When you need to move material in soft underfoot conditions, consider this Wetlands Dumper to get the job done. It's available for sale and possible rental...call for details.
|
|
| |
|
|
| |
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
(Click on following 3 drawings to enlarge)
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
Roller Chopper attachment
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
PMMB aux pontoons for 17,000 lb excavator or smaller
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
(Click on above picture to enlarge)
|
| |
(Click on above picture to enlarge)
|
| |
(Click on picture to enlarge)
|
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
Small Marsh Buggy
(Click on 7 photos to enlarge)
|
| |
|
| |
|
| |
|
| |
 |
| |
* * For more information,
click here
* *
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
(Click on 6 photos below to enlarge)
|
| |
 |
| |
|
| |
 |
| |
| |
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
(Click on above picture to enlarge)
|
| |
|
| |
| |
|
| |
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|

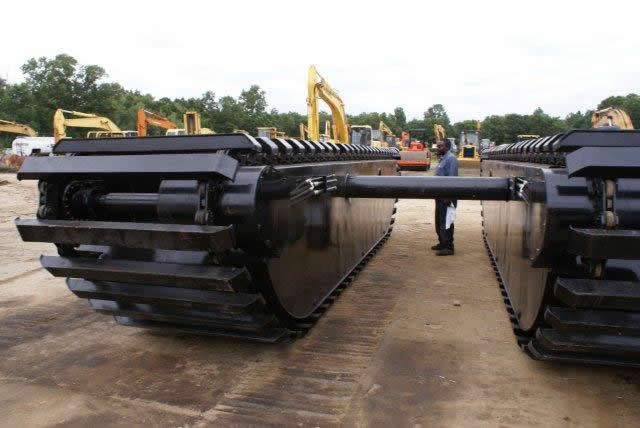

Assembly of a Marsh Buggy / Swamp Buggy
|
| |
Take each side
out of the container
|
Move and put both halves
on a level surface
|
| |
Mark which cap goes on which end
before removing lock bolts
|
Remove bolt on cap so support tube
can fit in the pontoon
|
| |
|
| |
Mark the bolt pattern and
which cap came off which tube
|
Slide tube into pontoon
|
| |
Slide tubes all the way in
|
Place pontoons at proper distance apart
|
| |
Bolt locking caps back on end of tubes
|
Lower frame onto the cross tubes
|
| |
Make sure hole for the hoses
is facing the hid lines
|
Tighten brackets loosely
until all brackets are on
|
| |
Tighten all brackets
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
(Click on 4 photos below to enlarge)
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
| |
 |
| |
|
| |
 |
| |
| |
|
| |
|
| |
|
| |
|
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
(Click on 4 photos below to enlarge)
|
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| Cutter / Mixers |
| |
|
| |
|
| |
 |
| |
 |
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
Polymer Track Shoes |
|
|
|
| |
| |
|
Example of when a Marsh Buggy should have been used
|
|
|
They wanted to spray the field and their sprayer got stuck. An excavator was brought in to dig it out. They made the mistake of
letting the excavator sit over night and found it stuck in the mud the next morning.
|
|
| |
|
Barges and mats don't always work out well either
|
|
|
| |
|
| |
Even my grandfather should have used a marsh buggy
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
Watch
the video of the floating marsh buggy
and
the video of the working marsh buggy
|
| |
* * * Please note that all marsh buggies may not float or perform like the one in the video.
Contact the sales office for the performance of a particular model.
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
 |
 |
| |
 |
| |
| |
 |
| |
|
| |
Marsh Buggy / Swamp Buggy Goes Where Traditional
Excavators Cannot Go
New from LongReachHighReach (LRHR) is the Amphibious
Marsh Buggy (Amphib MB, Amphibious Excavator)
specifically designed to maneuver and go through swampy
areas with soft underfoot terrain where traditional
excavators cannot go.
The Amphib MB is extremely productive in dredging, erosion control and erosion prevention. It also provides efficiency in waterway, river and pond shoreline construction and can be used for maintenance and clearing of rivers, lakes and other water projects.
The track chain is a three rail system. Shoes and cleats are supported by the track chain which provides a unifying pulling force with a superior weight to drive ratio across each track shoe and cleat.
A manual expansion system allows the pontoons to move in and out by one-foot on each side increasing and reducing the overall footprint of the unit. Highly maneuverable, the system is made of high-grade structural tensile plate steel with some steel components made with 100,000 psi steel.
Uniquely designed for easy breakdown and reassembly in a matter of hours, the Amphib MB and 20-ton excavator top can be shipped economically in three containers for contractors doing jobs in remote and distant areas.
The Amphib MB package for small and mid-sized hydraulic excavators is a natural compliment to Long Reach's product line of 100� Reach large excavator custom fronts.
|
Applications:
The Marsh Buggy has proven itself well in the
following applications:
-
Dredging
-
Landscaping
-
Erosion control and prevention
-
Deepening of waterway and river delta
-
Maintenance and cleaning of rivers, lakes, shoreline, ponds, etc.

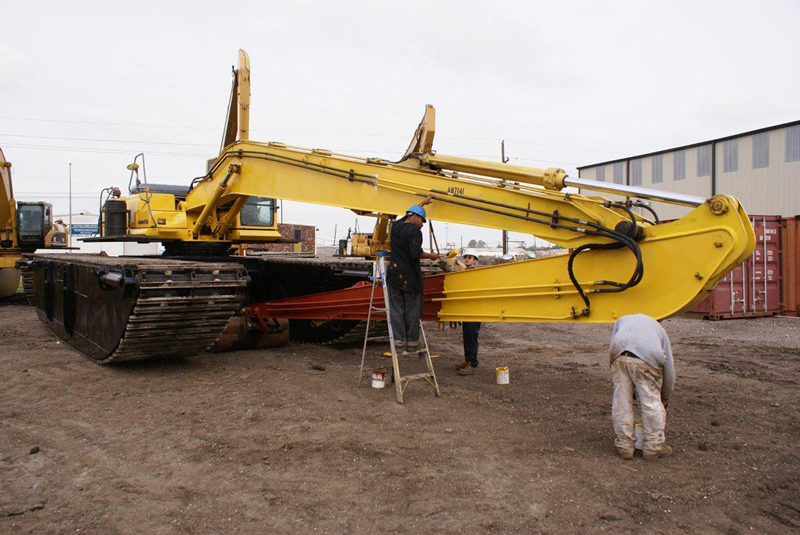

Attachment: Standard configuration of the Marsh Buggy comes with a long reach attachment
unless otherwise stated. The convenience of an extended reach and greater working range is always a welcomed advantage when carrying out work in marsh land
and dredging related projects.
|
| |
 |
| |
| |
|
| |
| |
Comparision with our Marsh Buggy a competitive unit with a CAT320 Machine
|
| |
|
Return to Top
|
| |
| |
* * To view our full page Marsh Buggy ad, please
click here
* *
|
| |
Marsh buggy for 20 metric ton excavator --
Length approximately 9m (29.5 ft)
Height approximately 2m (6.5 ft)
Width approximately 1.2m (4ft)
Hydraulic motor = 2 sets
Weight approx. 20 ton (44,000 lb) per pair
Requires 2x 40ft containers for shipment
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
Model 200
13m Long Reach
(Click on drawing to enlarge)
Model 300
16m Long Reach
(Click on drawing to enlarge)
Model 350
Long Reach Dimensions
(Click on drawing to enlarge)
|
| |
| |
Model 200
Designed for 20 - 22 ton
class excavator
|
Model 250
Designed for 24 - 27 ton
class excavator
|
| |
Model 300
Designed for 28 - 30 ton
class excavator
|
Model 350
Designed for 33 - 36 ton
class excavator
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
MARSH BUGGY / SWAMP BUGGY IN TRANSPORTATION MODE
EASY TO MOVE OVER THE ROAD

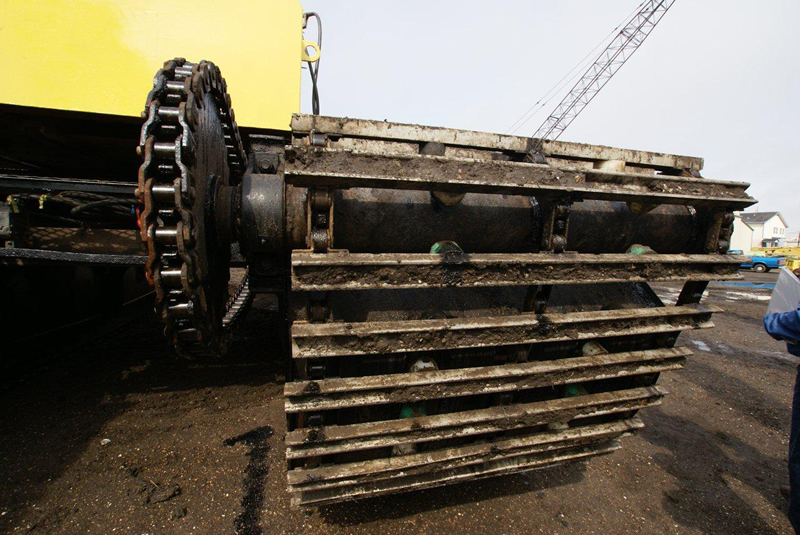

Additional photos of the track system
New CAT 320 Marsh Buggy Packaged for Container and Flat Rack Shipment

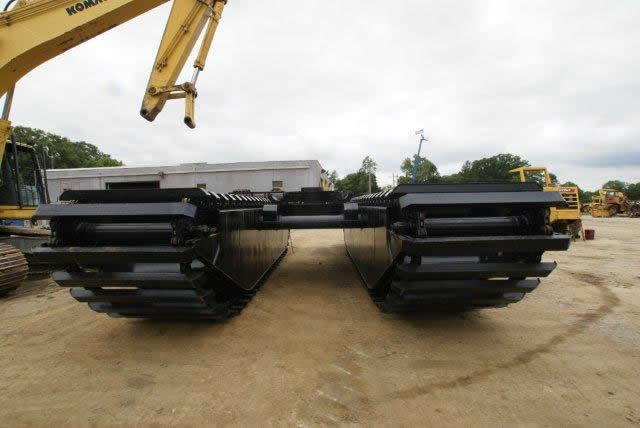

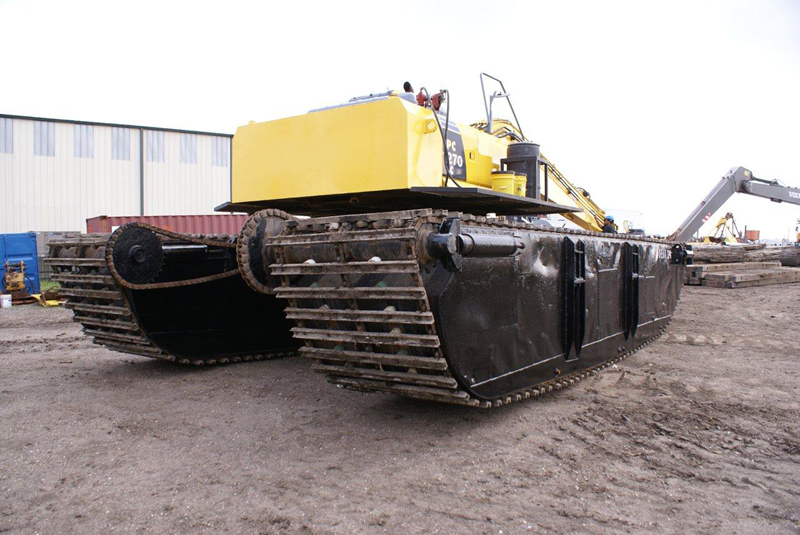

Photos of marsh buggy
/ swamp buggy bottom
(Click on photo to enlarge)
Loading the marsh buggy sections in an open top container for ocean shipment
Hauling the marsh buggy as a complete unit
to and from the port or to jobs at your location

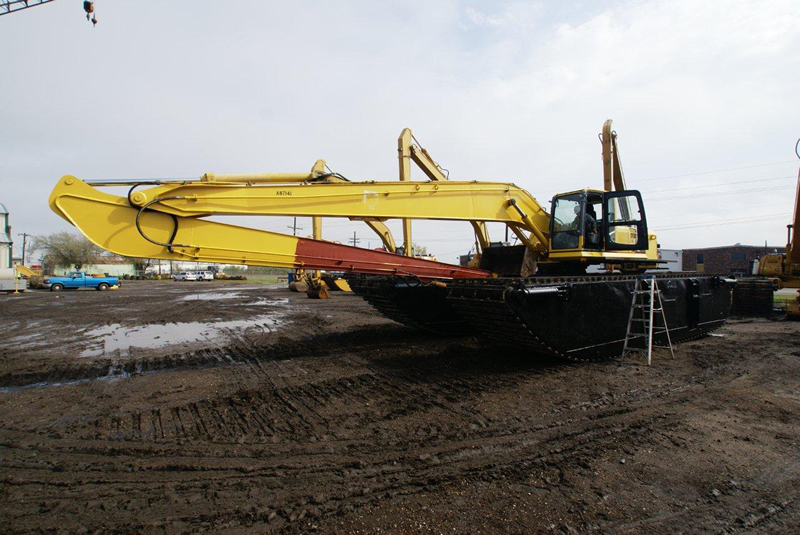

CAT 324E amphibious excavator with a 60' long reach excavator front
Additional photos of preparing the Marsh Buggy for transport....
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
|

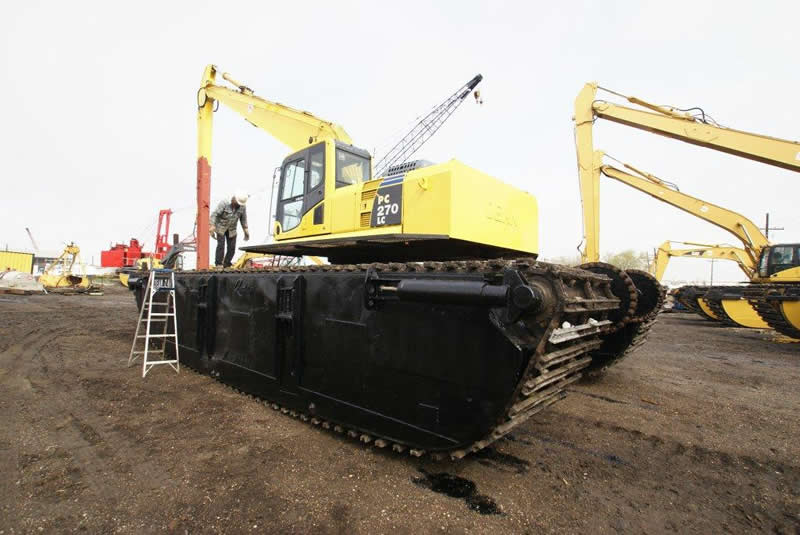

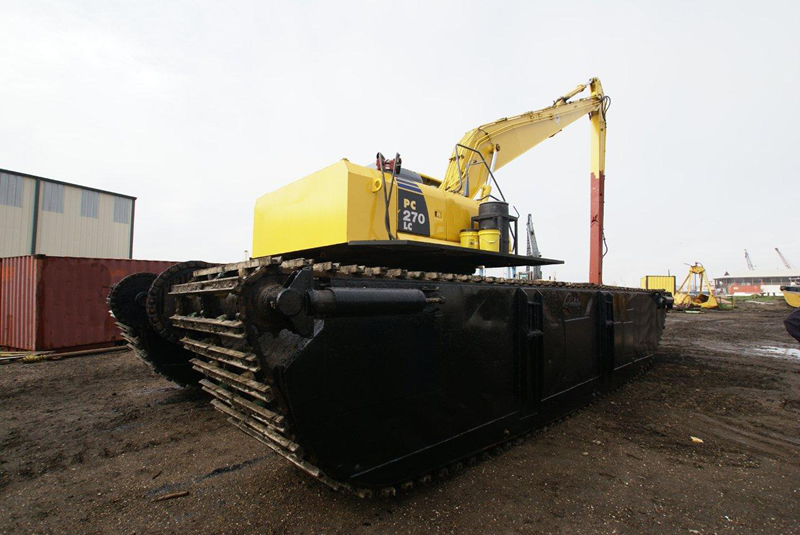

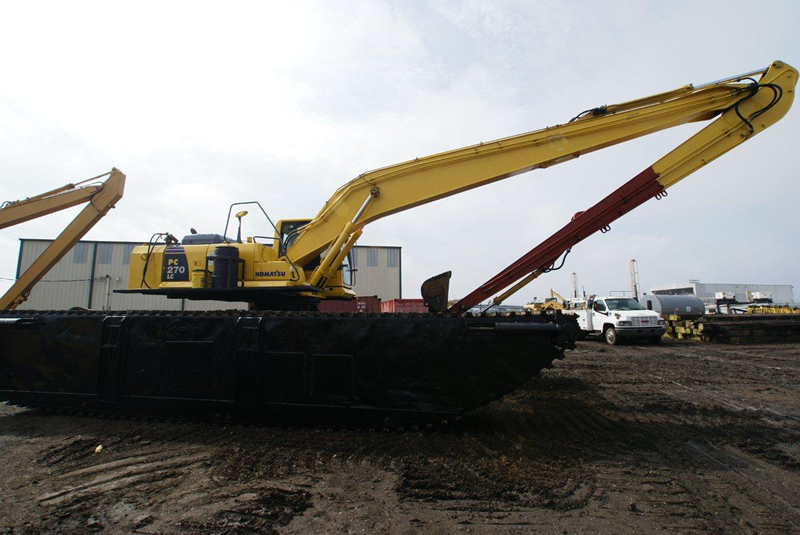

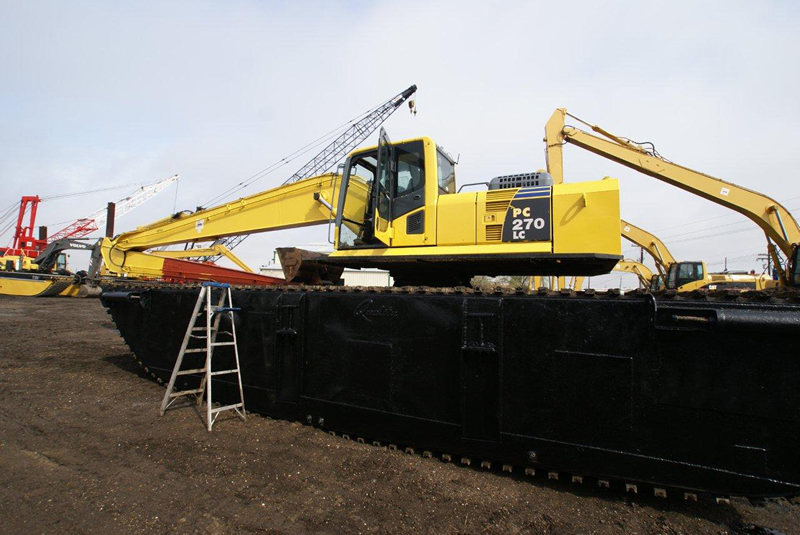

Additional Marsh Buggy / Swamp
Buggy Pictures
|
| |
(Click on the following photos to enlarge)
Length: 27�11� x Width: 4�11� x Height: 5�11�
Length: 8.5m x Width: 1.5m x Height: 1.8m
Weight of marsh buggy bottom: 28,000 lb Weight of turntable base: 4,500 lb
Overall width of Marsh Buggy is 17'2"
May need confirmation of mounting measurements
if we do not have your machine specifications on file.
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

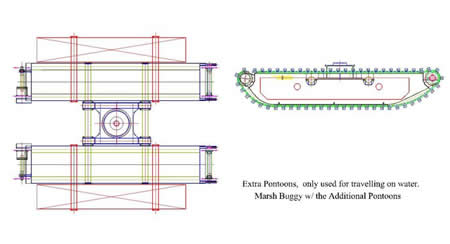

Marsh
Buggy / Swamp Buggy with the Additional Pontoons
(Click on drawing to enlarge)
28 ft Marsh Buggy with extra pontoons
Plan A
Extra Pontoon 20ft long, 3ft 9in high, 2ft wide
Two Pontoons weight 3600 lbs.
Net Floatage 8000 lbs.
|
Plan B
Extra Pontoon 20ft long, 3ft 9in high, 3ft 9in wide
Two Pontoons weight 6600 lbs.
Net Floatage 15000 lbs.
|
|
| |
Note: DRAWING ABOVE WITH PLAN A AND PLAN B GO WITH THE PICTURES
OF THE BLACK PONTOONS BELOW, NOT THE NEXT ENTRY OF GREY PONTOONS
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
| |
 |
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
| |
|
| |
| |
Fuel tank installed instead of counterweight
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
Length: 37� for standard front......43'8" for long front
Width: 15'11" Height: 12'9" - 13' Weight: 65,000 lb ?
Pontoons: 5'6" wide, 66" high
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
01052011 Ransome Adjustable Marsh Buggy Option
RAMBO goes anywhere - Call for price
(Click on drawings to enlarge)
|
| |
|
Features:
-
Easy assembly using the machine itself to load out and assemble.
-
Top machine can be dual purpose standand machine for normall digging and in a few hours be converted to a marsh buggy for really wet applications.
-
Easy transport with two trucks one stepdeck for the bottom and tradional low boy for the top. No crane or forklift required for assembly.
|
| |
(Click on above pictures to enlarge)
|
| |
(Click on following 3 drawings to enlarge)
|
| |
| |
|
| |
 |
| |
|
| |
|
|
| |
| |
|
| |
|
| |
|
| |
| |
|
| |
| |
Wintertime Marsh Buggies
|
| |
| |
Removeable spud for deeper water operation
|
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|

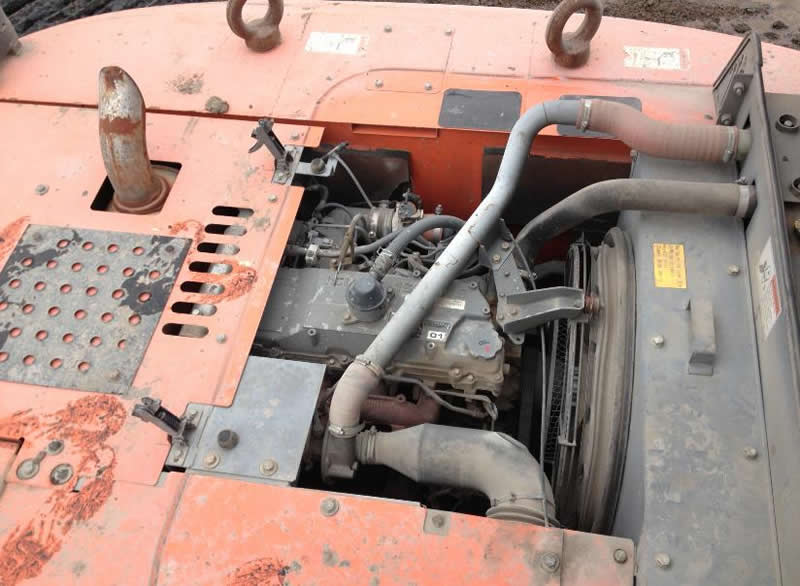

Marsh Buggy / Swamp Buggy Rebuild Program
|
| |
Bottom being primed, sand blasted and repainted
|
| |
Complete new chains being installed on existing pads on pontoons
|
| |
|
| |
|
| |
|
| |
| |
|
| |
|
| |
|
| |
|
| |
| |
|
| |
|
| |
| |
(Click on pictures to enlarge)
|
| |
| |
(Click on pictures to enlarge)
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
Steps to Convert the Turntable from your Machine to the Marsh Buggy
ADAPTER RING / MULTI TABLE 320c anb 01596
(Click on drawing to enlarge)
CHAINS and ADAPTER RING
|
| |
GENERAL SHIPPING SPECS OF OTHER MARSH BUGGY - do not use these specs without checking
with each machine as dimensions may differ
- 18 foot wide
- 30 foot long
- LR boom sticks out 15 feet
- Std boom 8 feet
- Height 13 feet
- Weight 70,000 lbs
|
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
Dimensions for 28-C Marsh Buggy
- Overall Dimension (Length x Width x Height) 27'11" x 15'11" x 5'11"
- Pontoon Dimension (Length x Width x Height) 27'11" x 4'11" x 5'11"
- Width of Track 4'11"
- Travelling Motor, TM40 Korea
- Pitch is 6 in.
|
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|

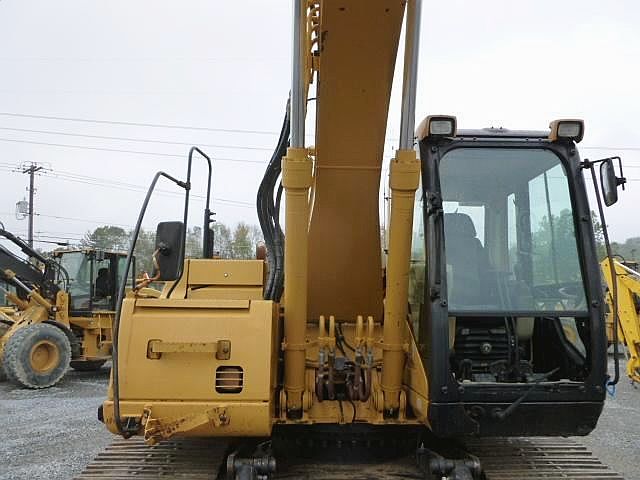

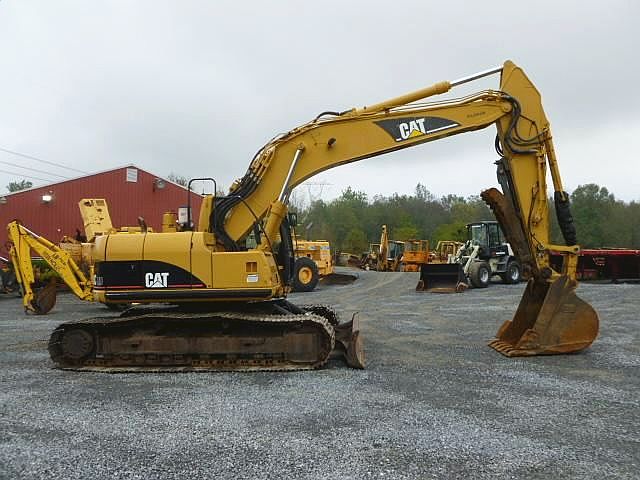

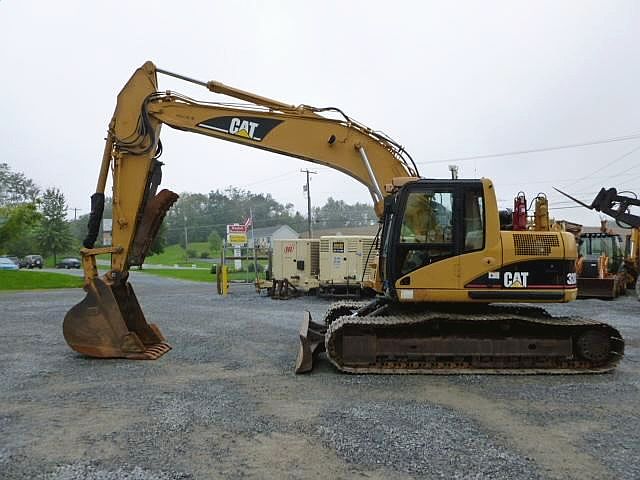

CAT 320 spec - standard operating weight approx 47,500 .... just the upper 28,524
|
