There are several attachment options for the Long Reach, High Reach and Material Handler front ends. Various models of the Clamshell Bucket and Grapple are displayed below.
Additional information on these attachments will be displayed when it becomes available. Please contact the Ransome sales office if there are any questions regarding these attachments.
|
Clamshell Buckets
|
| |

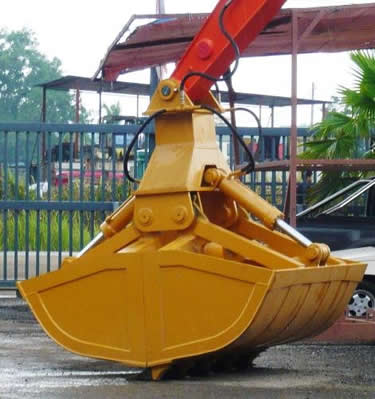

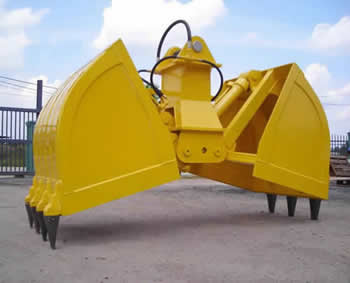

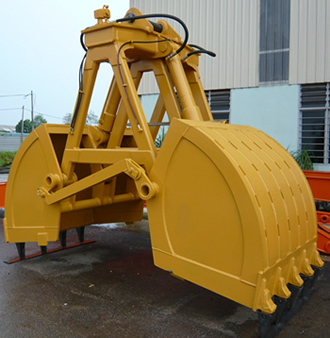

| 'CY' Series Hydraulic
Clamshell Bucket
|
|
'CY' Series Hydraulic
Clamshell Bucket
|
|
|
|
'CY' Series Hydraulic
Clamshell Bucket
|
|
CY Hydraulic Clamshells 2008 Pricing
| Capacity |
Price |
| 2.6 cubic yard |
$ 22,900 |
| 3.9 cubic yard |
$ 27,900 |
| 5.2 cubic yard |
$ 39,000 |
| 6.5 cubic yard |
$ 41,900 |
|
| |
| |

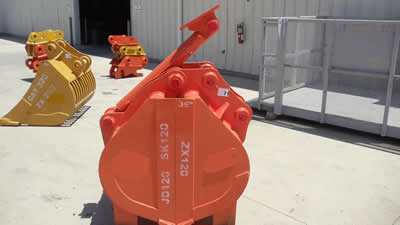

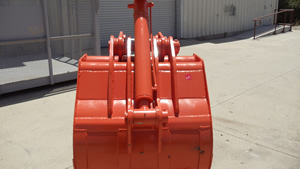

Another Hydraulic Clamshell
|
| |
| |
| |
 |

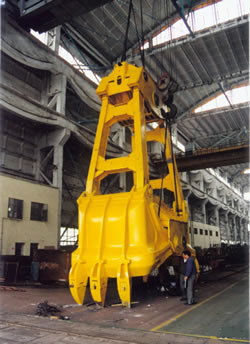

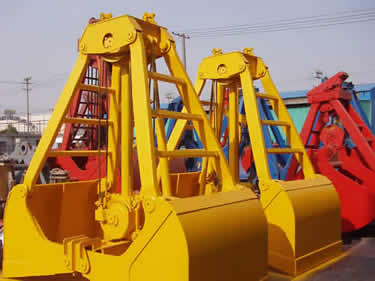

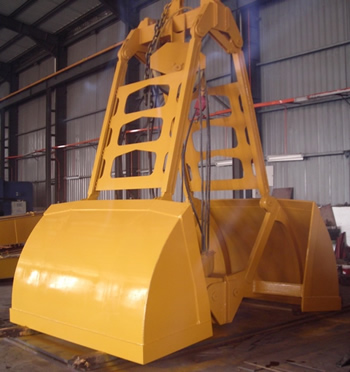

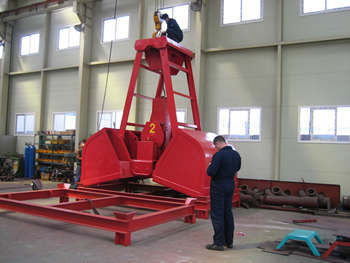

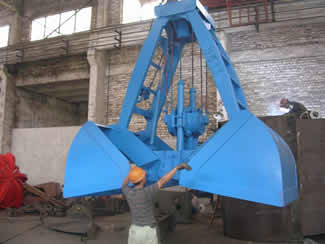

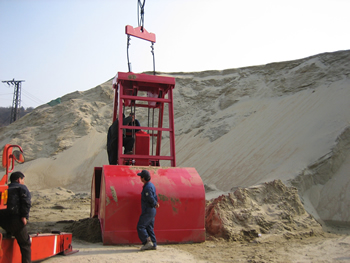

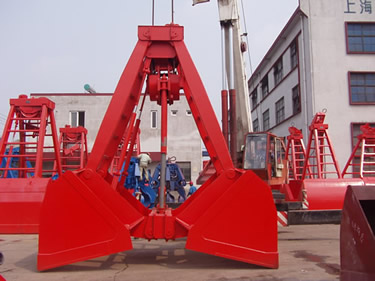

'NC' Series Cable
Clamshell Bucket
|
|

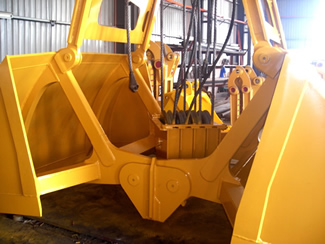

'NC' Series Cable
Clamshell Bucket
|  |
|
NC Cable Clamshells 2008 Pricing
| Capacity |
Price |
| 5.8 cubic yard |
$ 49,000 |
| 7.8 cubic yard |
$ 59,000 |
|
| |
| |
|

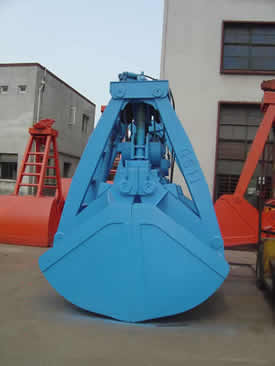

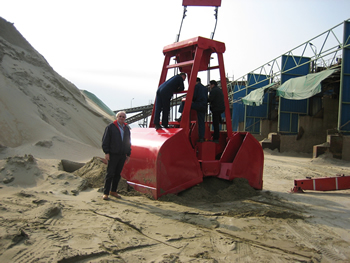

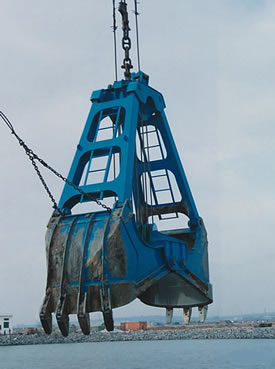

Additional 'NC' clamshells....
|
| |
 |
| |
 |
 |
| |
 |
| |
|
| |
|
| |
|
Return to Top
|
| |
Grapples
|
| |
|

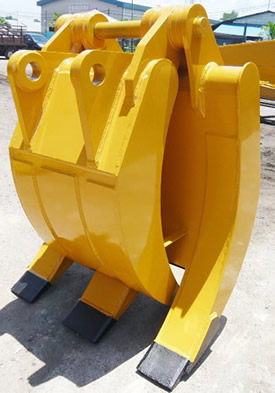

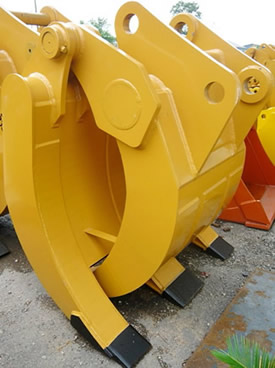

The GP series heavy duty grapple is a reinforced box, 2-tine clamp over a over 3-tine frame design, ideal for rough, tough and general utilities applications.
Recommended for rock handling, land clearing, stacking, piling, scrap handling,... where applications require maximum clamping and prying force.
The lugs designed works perfectly with or without a quick coupler. Full tensile steel construction with internal reinforcement.
|
GP20HD Grapple |
GP22HD Grapple |
|
|
Applications:
- Demolition, rock handling, stacking, piling, general utilities.
- Ideal for applications where it requires maximum clamp force.
- Handling of waste material for recycling industry.
Features:
- Ease of assembly, work perfectly with or without quick coupler.
- Reinforced box design.
- 2-tine clamp over 3-tine frame design.
- Large surface area for maximum load.
- Unique "A" frame stiff arm for enhance distribution of clamping force for 40 ton (88,000 lb) or larger excavator.
|
 |
| |

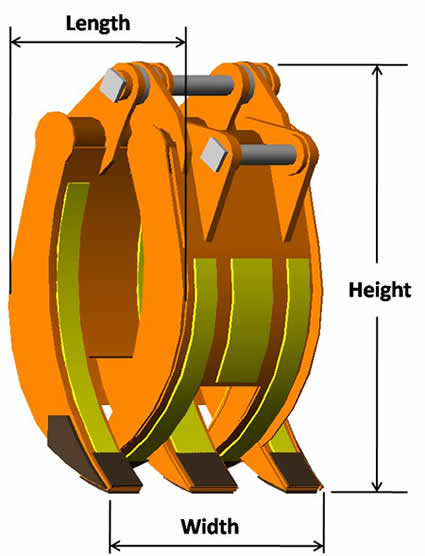

Specifications -- July 2008
| Model |
Excavator Class (lbs) |
Weight (lbs) |
Height |
Width |
Length |
Max Jaw Opening |
| GP 20xx |
44k - 55k |
3,300 |
61" |
46" |
36" |
101" |
| GP 22xx |
66k - 77k |
3,960 |
61" |
53" |
43" |
109" |
| GP 33xx |
66k - 99k |
5,280 |
64" |
57" |
44" |
113" |
|
| |

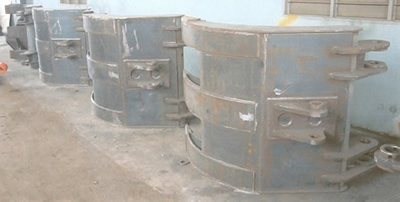

Heavy Duty Grapples prior to Painting
|
| |
Orange Peel Grapples
|

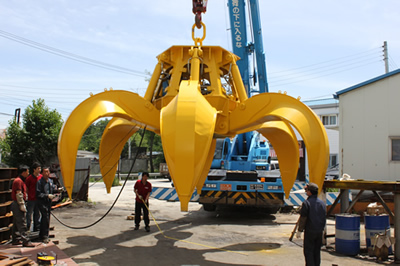

Large self loading grapple --- model SLG-12000
|
| |
|
Return to Top
|
| |

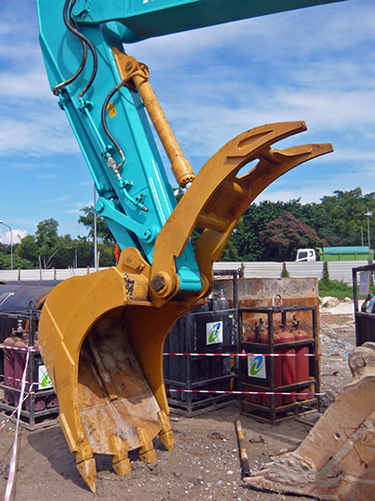

Thumbs
|
| |
 |
| |
