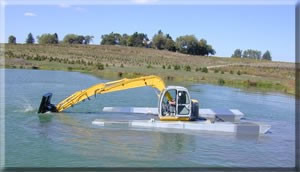

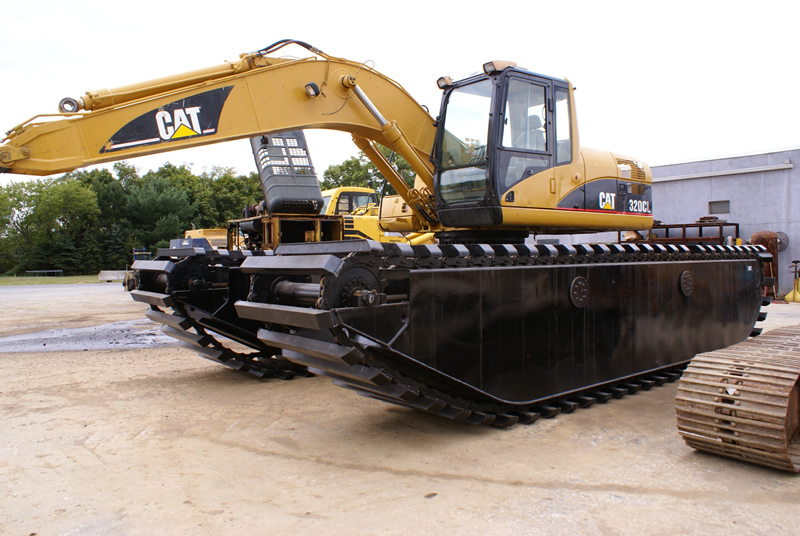

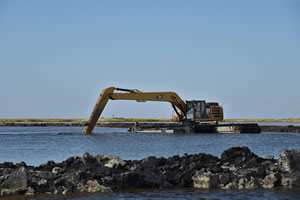

Marsh Buggies / Swamp Buggy

Amphibious Excavators


Click here for the Best Deal for
Marsh Buggy/Swamp Buggy/Amphibious Excavator



Marsh Buggies / Swamp Buggy for Sale and Rent, click here

Working Marsh Buggy Video
* * * Please note that all marsh buggies may not float or perform like the one in the video.
Contact the sales office for the performance of a particular model.


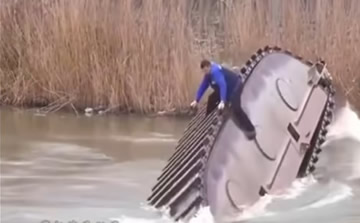

Watch

the video of hydraulically extending and retracting pontoons

and

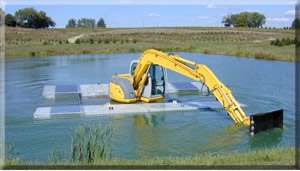

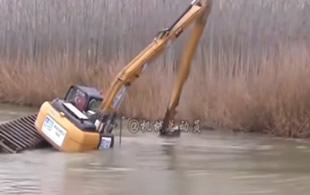

the video of a hydraulic excavator crossing a waterway



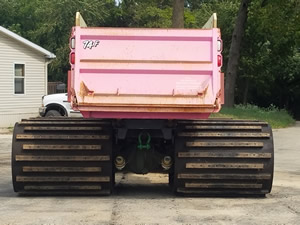

When you need to move material in soft underfoot conditions, consider this Wetlands Dumper to get the job done. It's available for sale and possible rental...call for details.

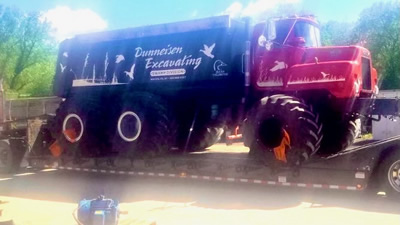

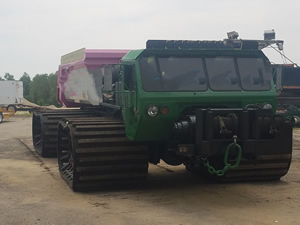

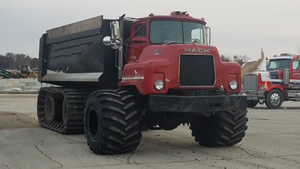

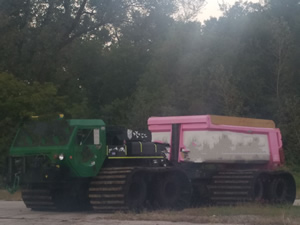

"Fat Boy" Amphibious Truck

  • All terrain, all seasons
  • A/C, heater defroster, Bluetooth
  • Automatic transmission, intuitive dash display
  • Large cab space, ergonomic seating
  • Ease of operation



Rolligon 4460





  • Comes with a 400 Gallon Diesel Tank
  • Tank can removed for a flatbed option
  • 8k capacity



* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

(Click on following 3 drawings to enlarge)
marsh buggies features
marsh buggies features
marsh buggies features

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

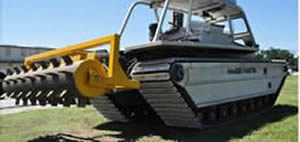

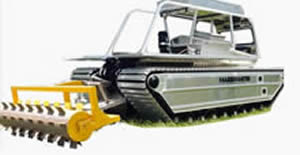

Roller Chopper attachment







* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

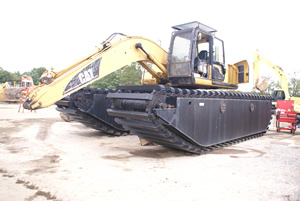

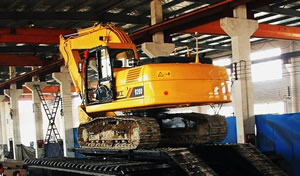

CAT 306 Marsh Buggy
(Click on 2 photos to enlarge)


  • Amphibious excavator with bucket and hydraulic thumb attachment
  • Max dump height - 22'1"
  • Max digging depth @ ground level - 11'6"
  • Max digging depth soft terrain - 13'6"
  • Max digging reach @ ground level - 21'11"
  • Bucket breakout force - 11,578 lbs.


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

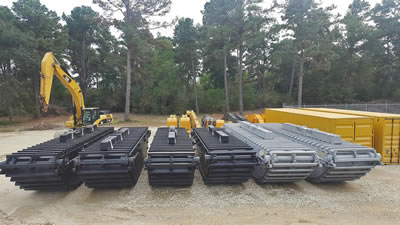

PMMB aux pontoons for 17,000 lb excavator or smaller

marsh buggies pontoons

marsh buggies pontoons     marsh buggies pontoons

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

marsh buggies pontoons
(Click on above picture to enlarge)

marsh buggies pontoons
(Click on above picture to enlarge)

marsh buggy
(Click on picture to enlarge)


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

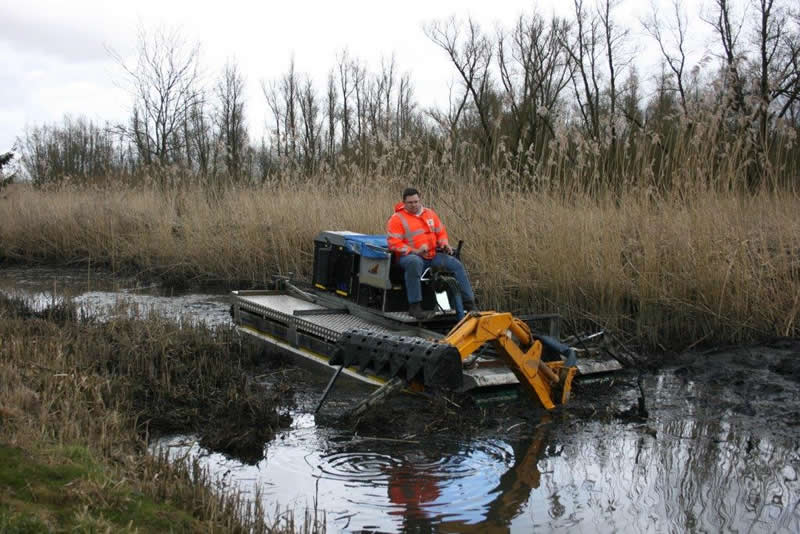

Small Marsh Buggy
(Click on 7 photos to enlarge)







* * For more information, click here * *

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

(Click on 6 photos below to enlarge)








* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


marsh buggies pontoons
(Click on above picture to enlarge)

marsh buggies pontoons


marsh buggy

swamp buggy        marsh buggy

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

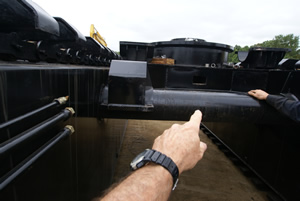

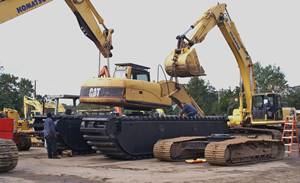

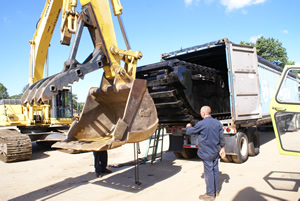

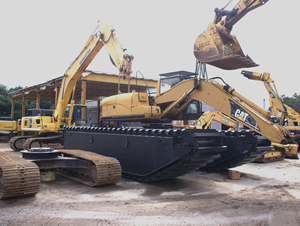

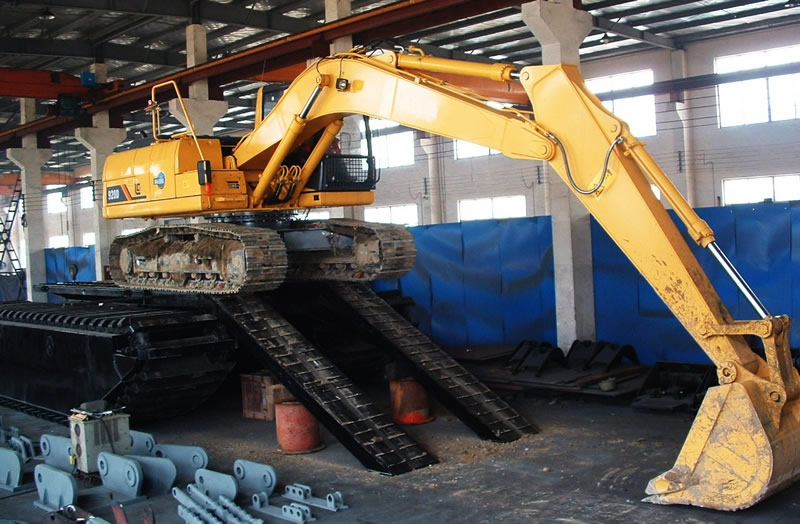

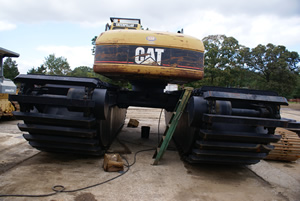

Assembly of a Marsh Buggy / Swamp Buggy

marsh buggy assembly
Take each side
out of the container
marsh buggy assembly

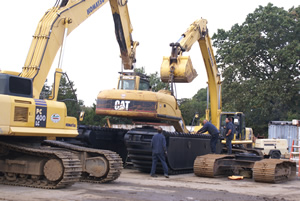

Move and put both halves
on a level surface

marsh buggy assembly
Mark which cap goes on which end
before removing lock bolts

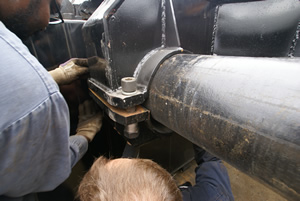

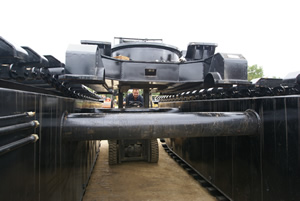

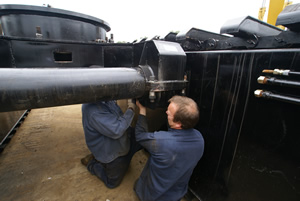

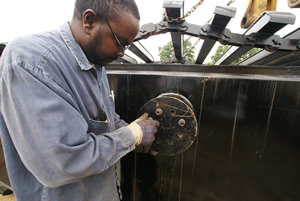

swamp buggy assembly

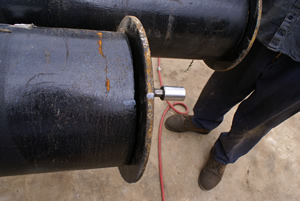

Remove bolt on cap so support tube
can fit in the pontoon

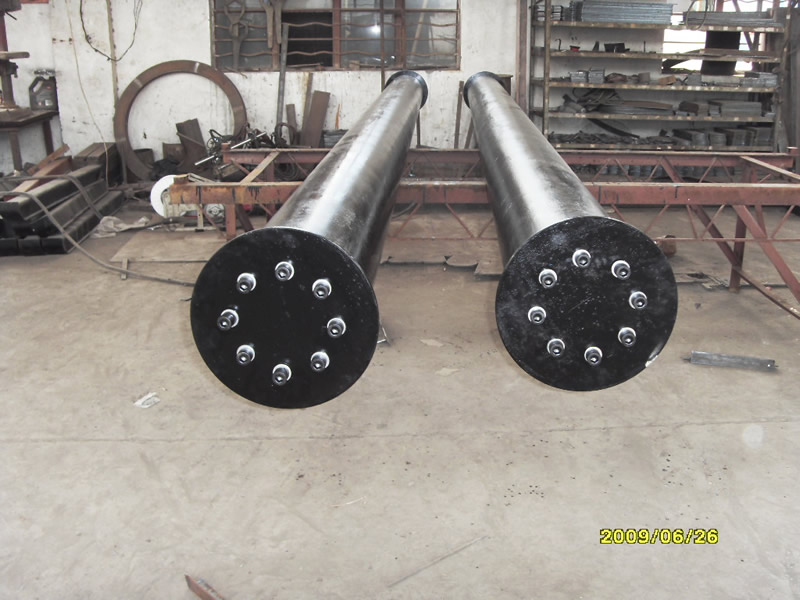

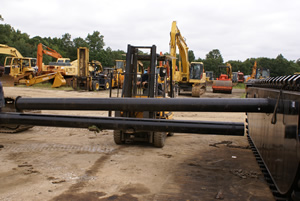

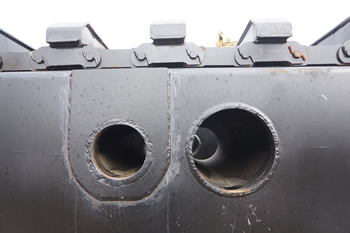

marsh buggy tube

marsh buggy assembly
Mark the bolt pattern and
which cap came off which tube
swamp buggy assembly

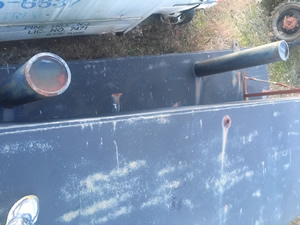

Slide tube into pontoon


marsh buggy assembly
Slide tubes all the way in
swamp buggy assembly
Place pontoons at proper distance apart

marsh buggy assembly

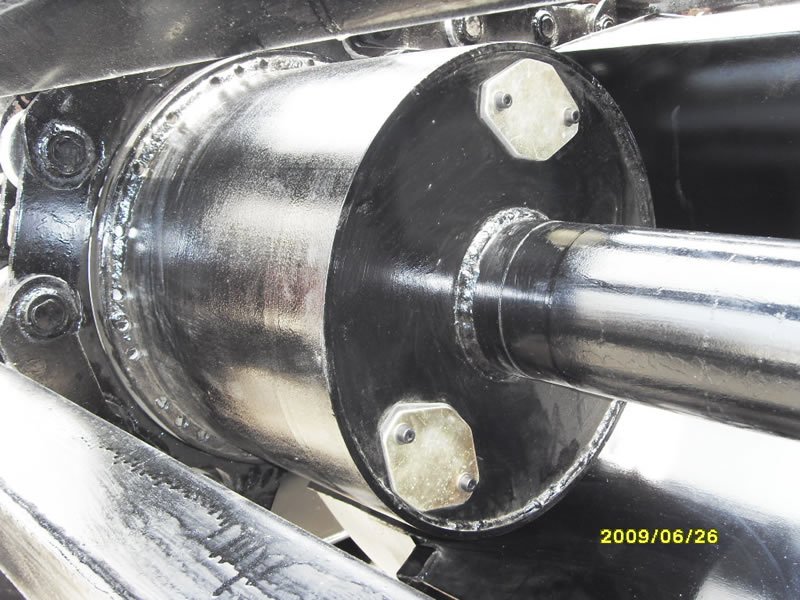

Bolt locking caps back on end of tubes
swamp buggy assembly

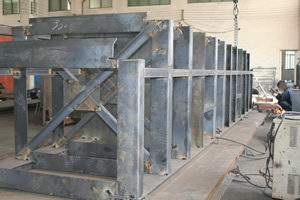

Lower frame onto the cross tubes

marsh buggy assembly
Make sure hole for the hoses
is facing the hid lines
swamp buggy assembly

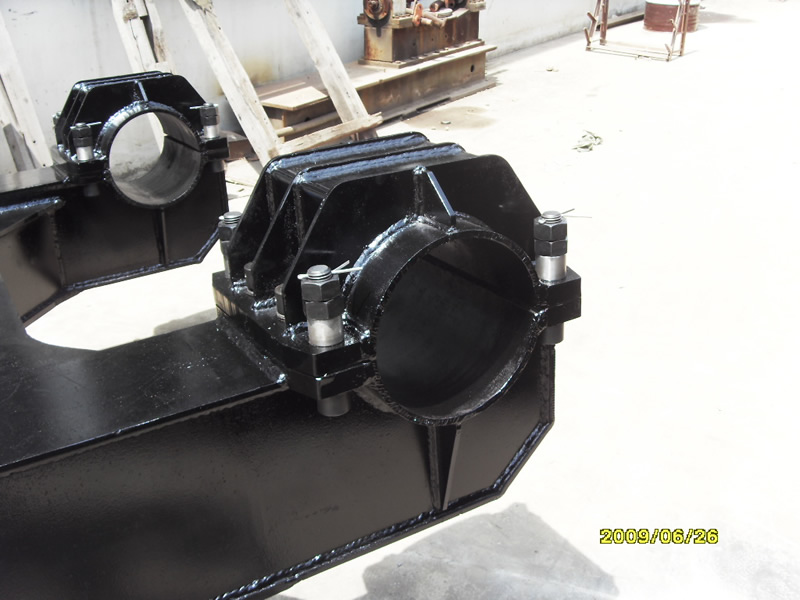

Tighten brackets loosely
until all brackets are on

amphibious excavator assembly
Tighten all brackets

marsh buggy assembly swamp buggy assembly

marsh buggy assembly swamp buggy assembly

marsh buggy assembly swamp buggy assembly

marsh buggy assembly swamp buggy assembly

marsh buggy assembly swamp buggy assembly

marsh buggy assembly swamp buggy assembly


(Click on 4 photos below to enlarge)

marsh buggy bottom     swamp buggy bottom

marsh buggy bottom     swamp buggy bottom



* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

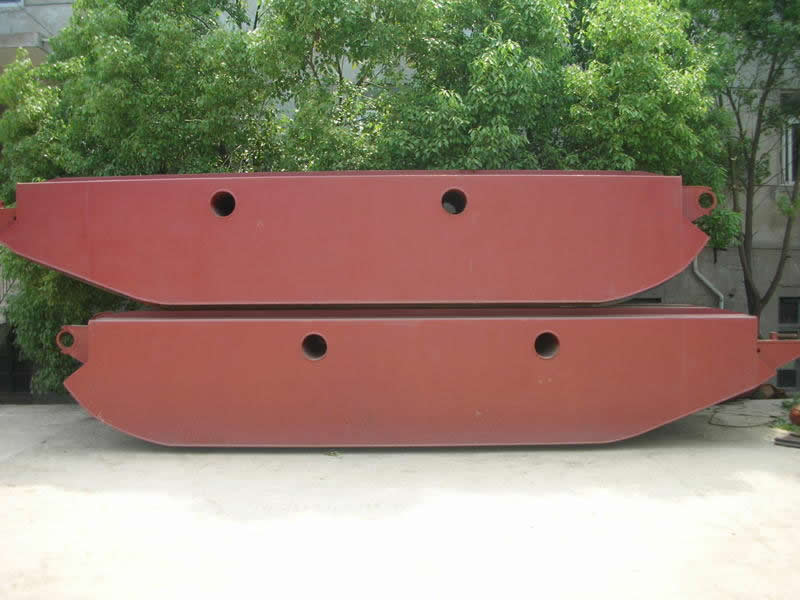

marsh buggy pontoons      marsh buggy pontoons

marsh buggy pontoons



marsh buggy pontoons











* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
(Click on 4 photos below to enlarge)







* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

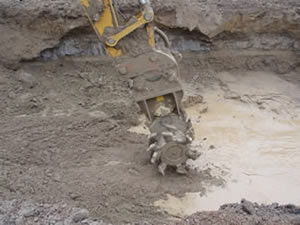

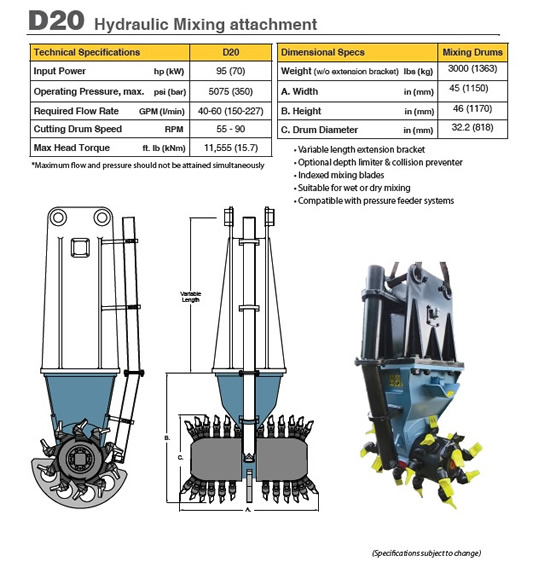

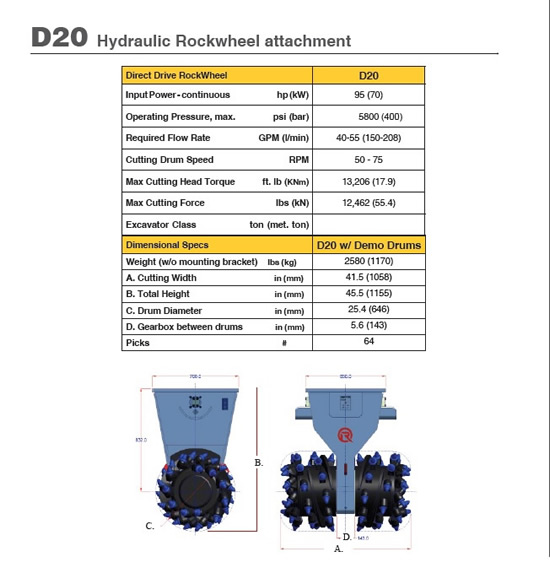

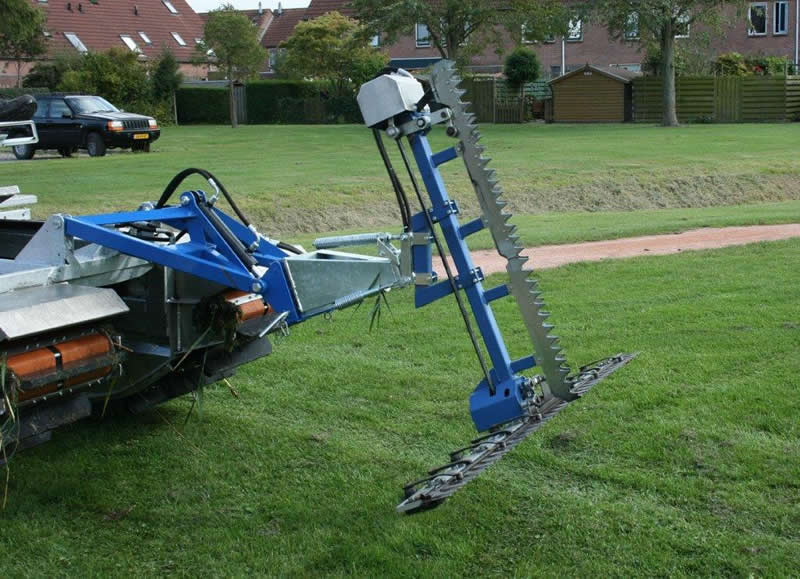

Cutter / Mixers








* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Polymer Track Shoes

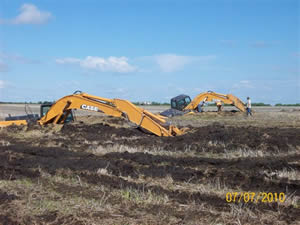

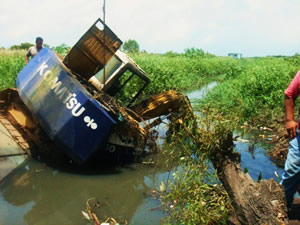

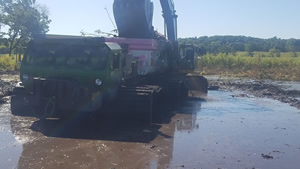

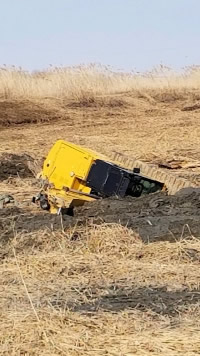

Example of when a Marsh Buggy or Swamp Buggy should have been used
swamp buggies    swamp buggies

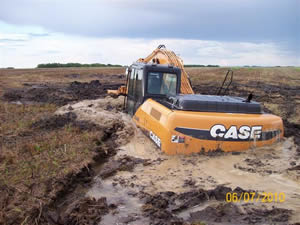

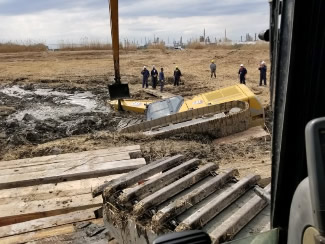

They wanted to spray the field and their sprayer got stuck. An excavator was brought in to dig it out. They made the mistake of letting the excavator sit over night and found it stuck in the mud the next morning.
swamp buggies    swamp buggies

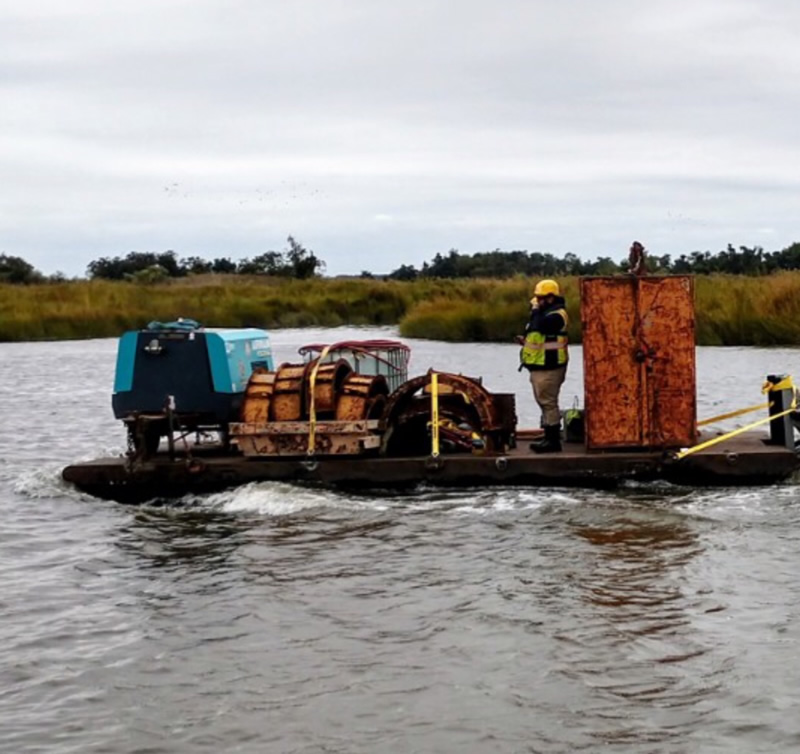

Barges and mats don't always work out well either
swamp buggies    swamp buggies
swamp buggies

swamp buggies

swamp buggies
Even my grandfather should have used a marsh buggy





* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Watch

the video of the floating marsh buggy

and

the video of the working marsh buggy

Marsh buggies are perfect for installing beach prisms


* * * Please note that all marsh buggies may not float or perform like the one in the video.
Contact the sales office for the performance of a particular model.

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

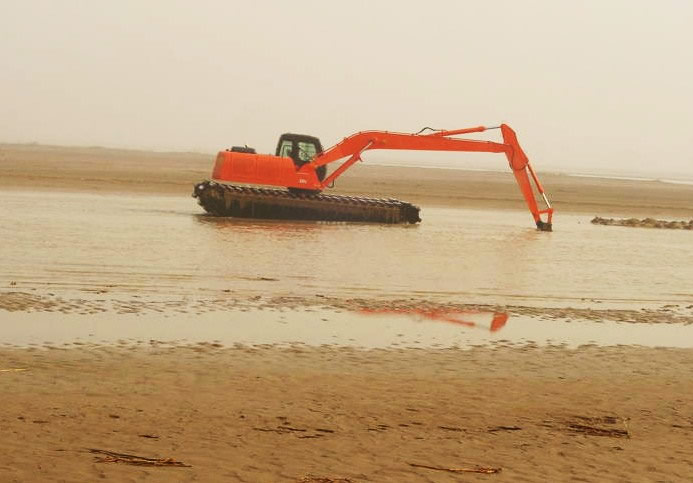

amphibious excavator
amphibious excavator

amphibious excavator


amphibious excavator

marsh buggy         swamp buggy

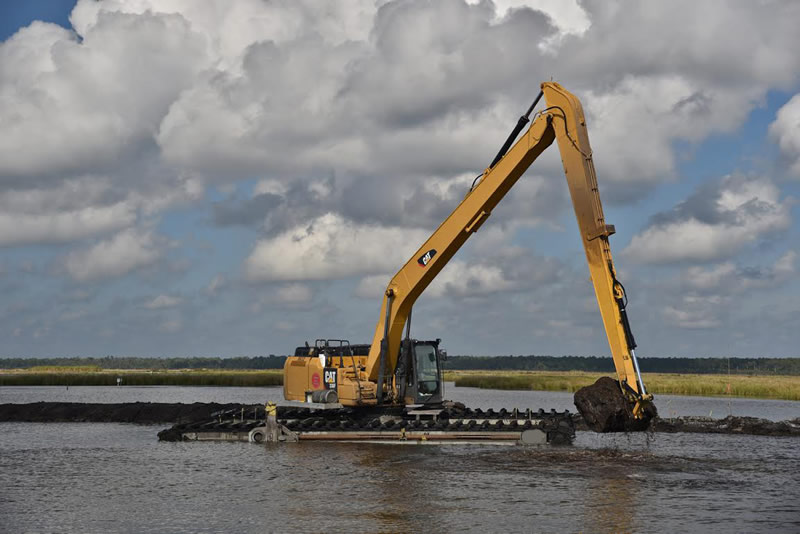

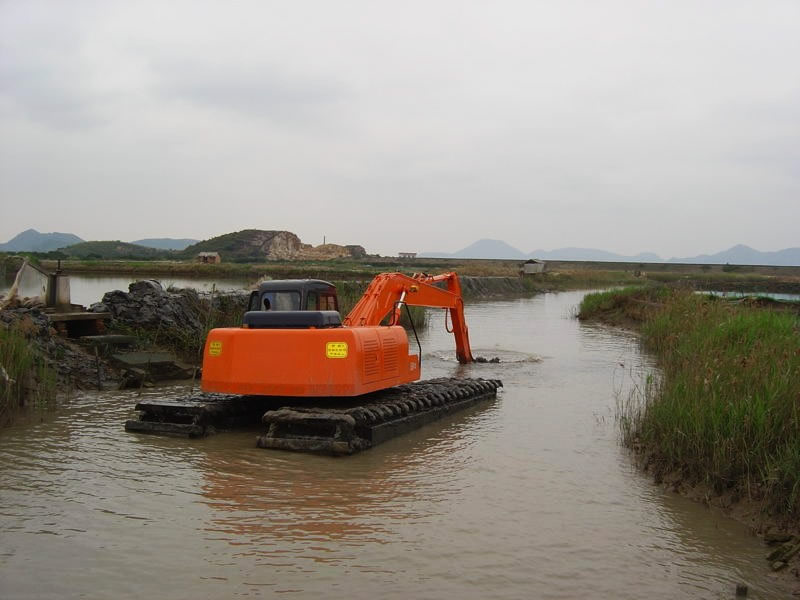

Marsh Buggy / Swamp Buggy Goes Where Traditional Excavators Cannot Go

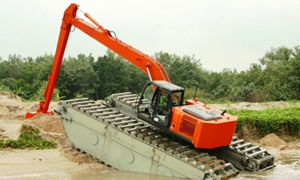

New from LongReachHighReach (LRHR) is the Amphibious Marsh Buggy (Amphib MB or Amphibious Excavator) specifically designed to maneuver and go through swampy areas with soft underfoot terrain where traditional excavators cannot go.

The Amphib MB is extremely productive in dredging, erosion control and erosion prevention. It also provides efficiency in waterway, river and pond shoreline construction and can be used for maintenance and clearing of rivers, lakes and other water projects.

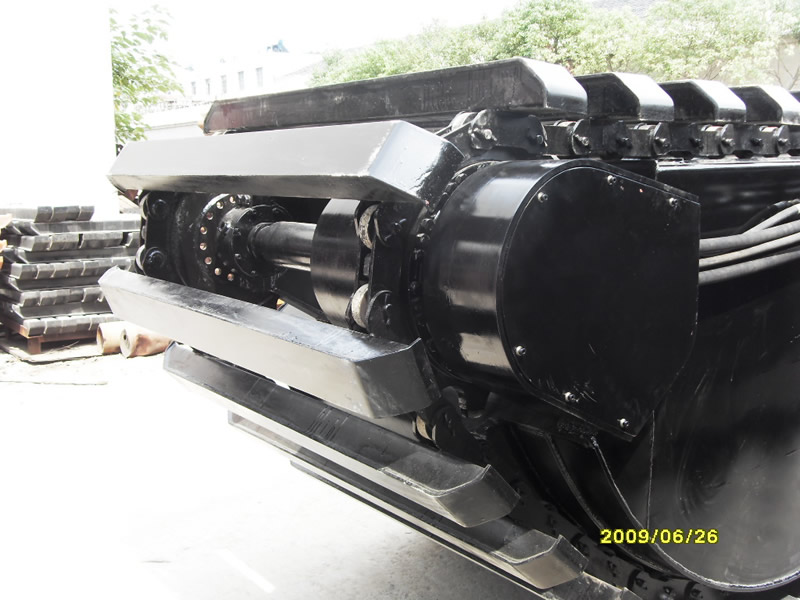

The track chain is a three rail system. Shoes and cleats are supported by the track chain which provides a unifying pulling force with a superior weight to drive ratio across each track shoe and cleat.

A manual expansion system allows the pontoons to move in and out by one-foot on each side increasing and reducing the overall footprint of the unit. Highly maneuverable, the system is made of high-grade structural tensile plate steel with some steel components made with 100,000 psi steel.

Uniquely designed for easy breakdown and reassembly in a matter of hours, the Amphib MB and 20-ton excavator top can be shipped economically in three containers for contractors doing jobs in remote and distant areas.

The Amphib MB package for small and mid-sized hydraulic excavators is a natural compliment to Long Reach's product line of 100� Reach large excavator custom fronts.




Applications:

The Marsh Buggy / Swamp Buggy has proven itself well in the following applications:

  • Dredging
  • Landscaping
  • Erosion control and prevention
  • Deepening of waterway and river delta
  • Maintenance and cleaning of rivers, lakes, shoreline, ponds, etc.



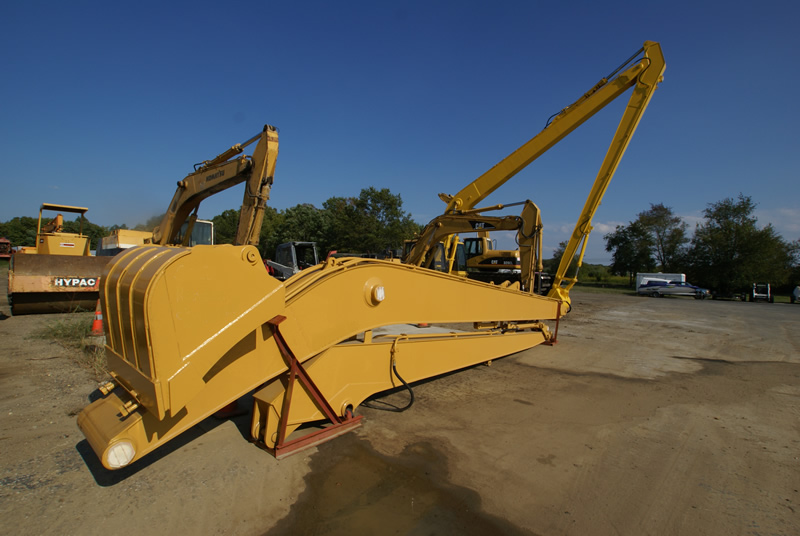

Attachment: Standard configuration of the Marsh Buggy comes with a long reach attachment unless otherwise stated. The convenience of an extended reach and greater working range is always a welcomed advantage when carrying out work in marsh land and dredging related projects.


amphibious excavator


marsh buggy        swamp buggy

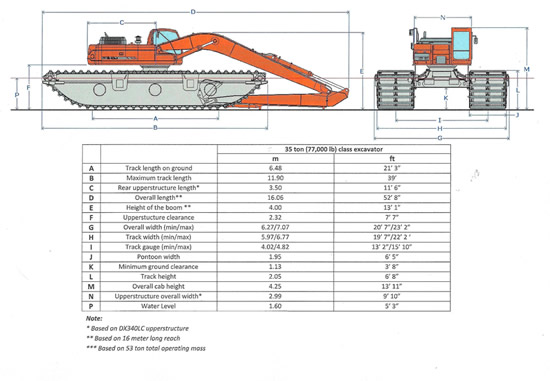

Comparision with our Marsh Buggy a competitive unit with a CAT320 Machine
comparison table

Return to Top


* * To view our full page Marsh Buggy ad, please click here * *


Marsh buggy for 20 metric ton excavator --
Length approximately 9m (29.5 ft)
Height approximately 2m (6.5 ft)
Width approximately 1.2m (4ft)
Hydraulic motor = 2 sets
Weight approx. 20 ton (44,000 lb) per pair
Requires 2x 40ft containers for shipment

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Model 200
13m Long Reach

marsh buggy

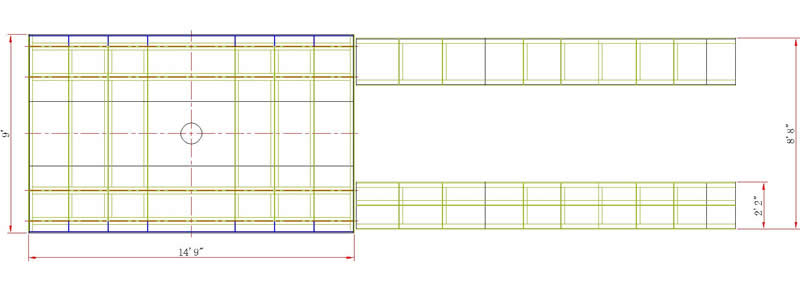

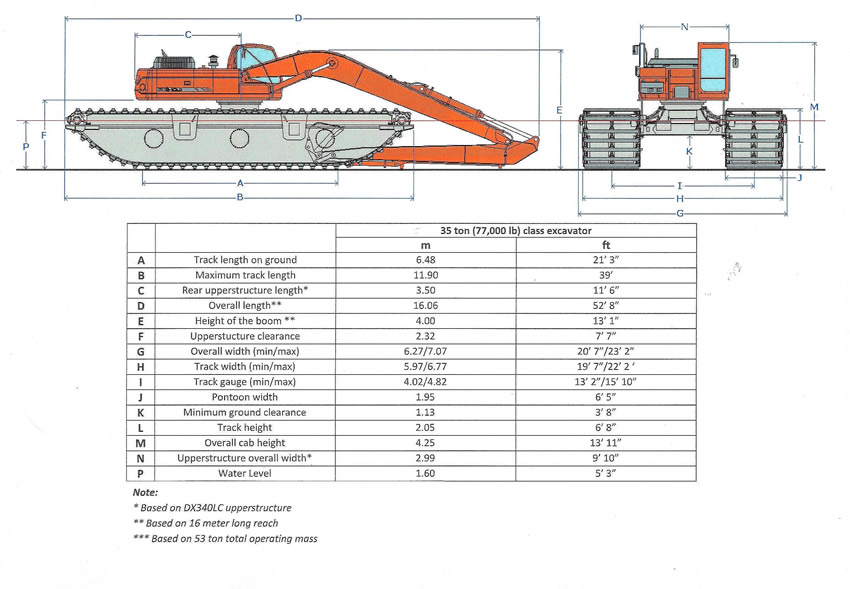

(Click on drawing to enlarge)



Model 300
16m Long Reach

marsh buggy
(Click on drawing to enlarge)



Model 350

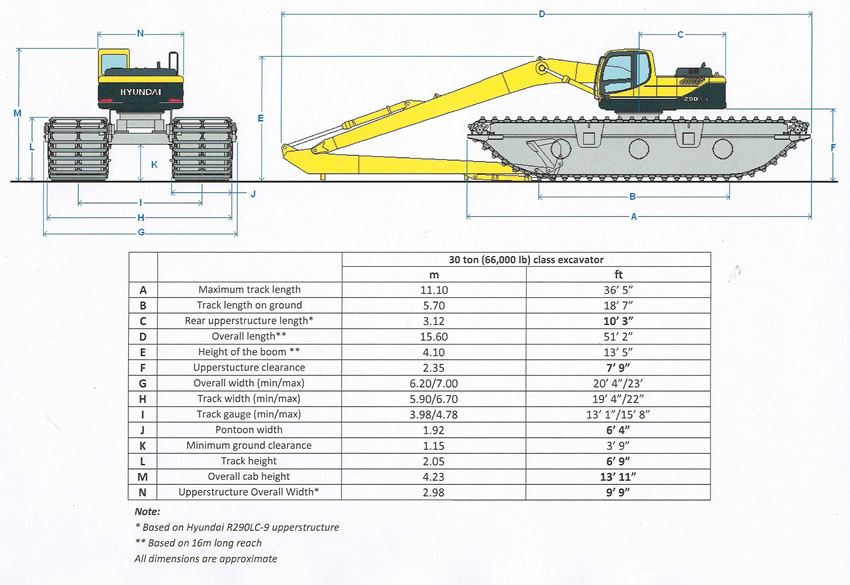

Long Reach Dimensions

marsh buggy
(Click on drawing to enlarge)


Model 200
amphibious excavator model 200
Designed for 20 - 22 ton
class excavator
Model 250
marsh buggy model 250
Designed for 24 - 27 ton
class excavator

Model 300
model 300
Designed for 28 - 30 ton
class excavator
Model 350
marsh buggy model 350
Designed for 33 - 36 ton
class excavator

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

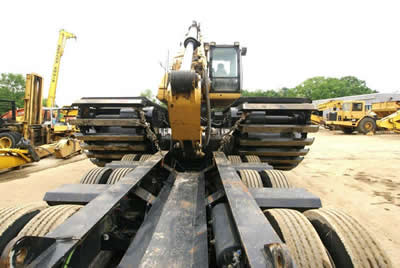

MARSH BUGGY IN TRANSPORTATION MODE
EASY TO MOVE OVER THE ROAD

marsh buggy transport

swamp buggy transport















marsh buggy transport


swamp buggy

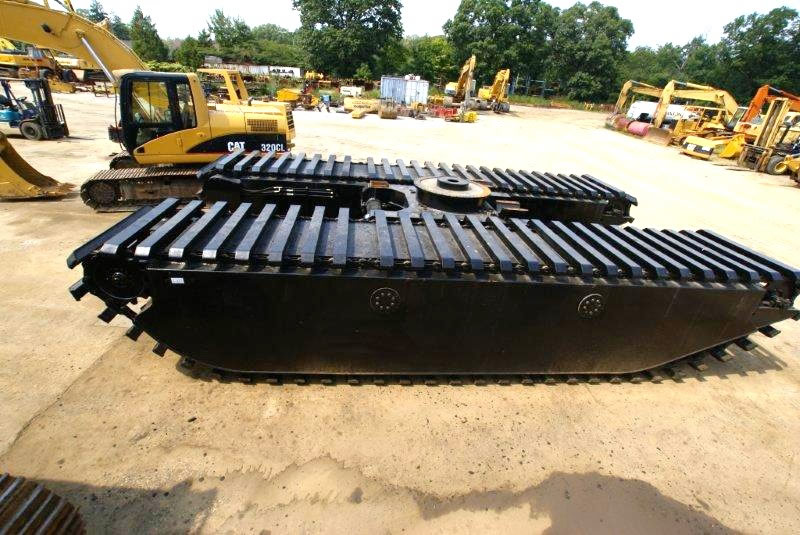

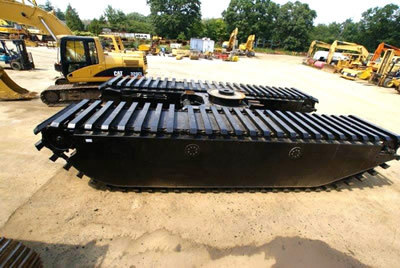

marsh buggy bottom     swamp buggy bottom

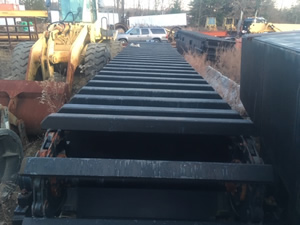

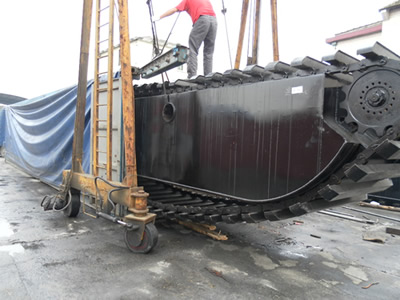

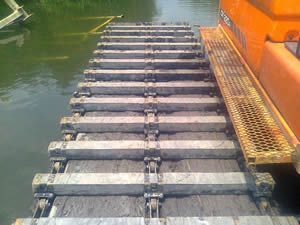

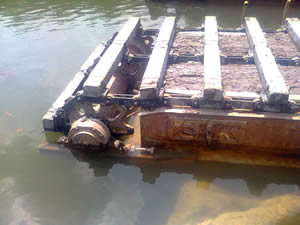

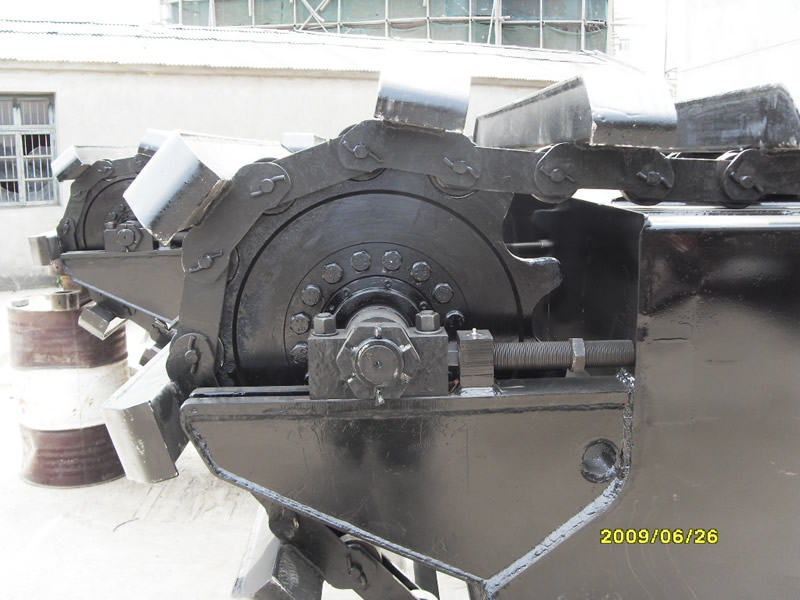

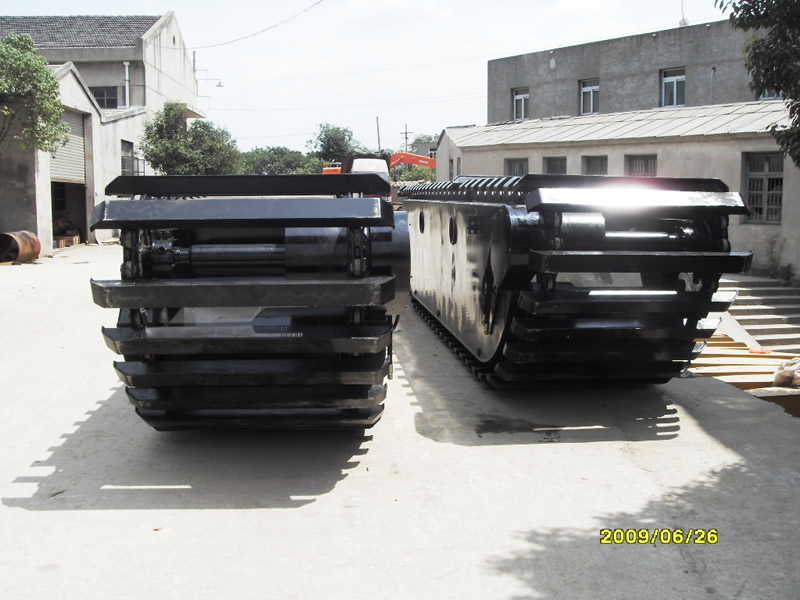

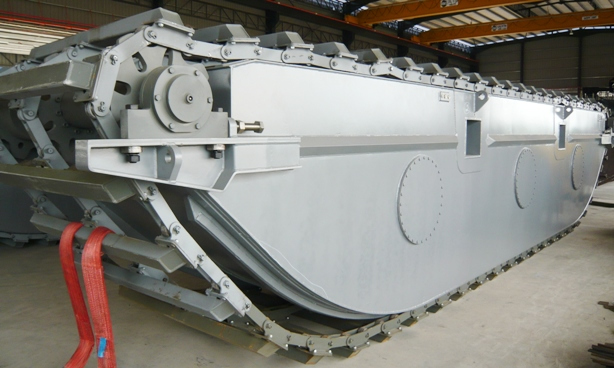

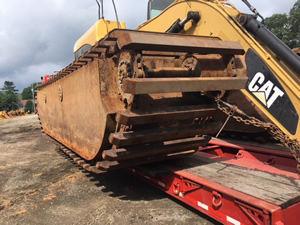

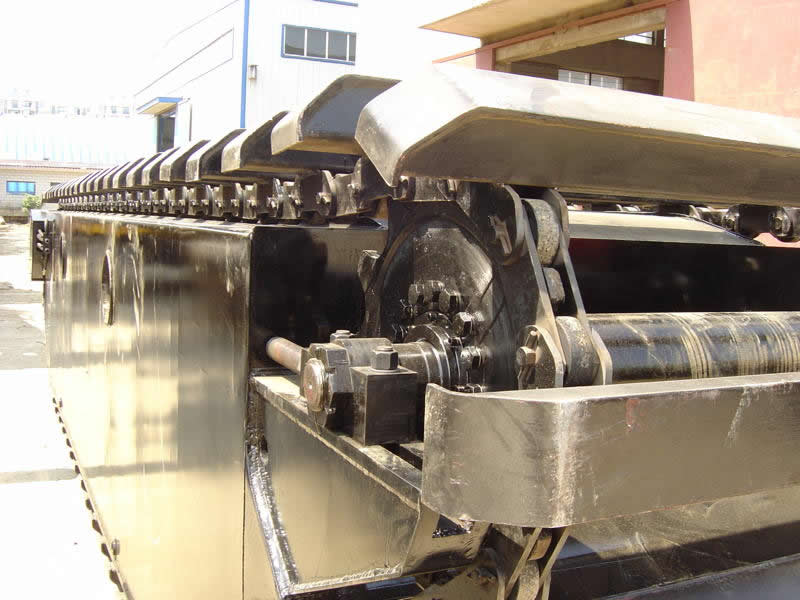

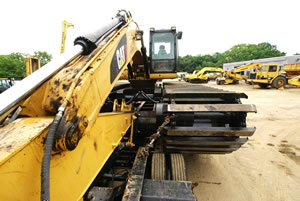

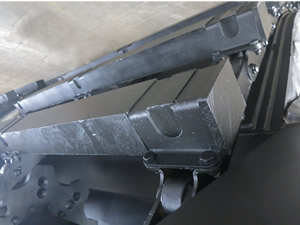

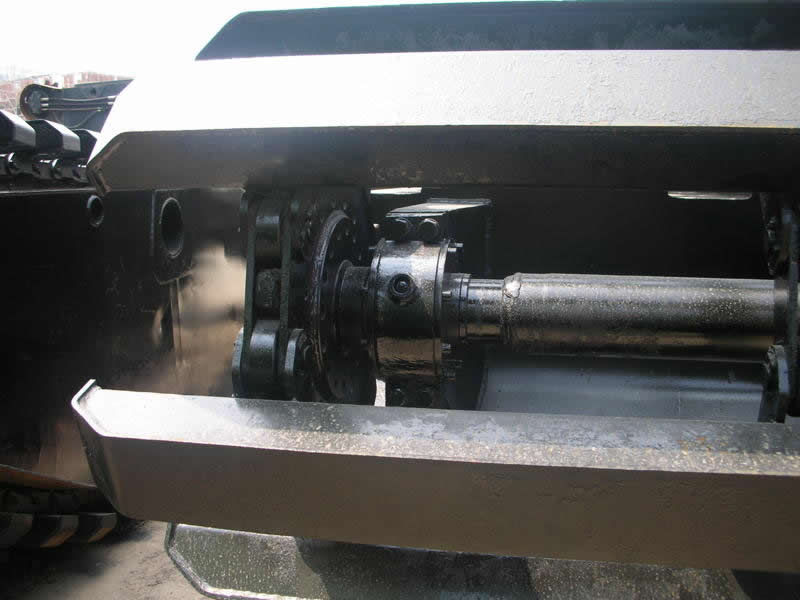

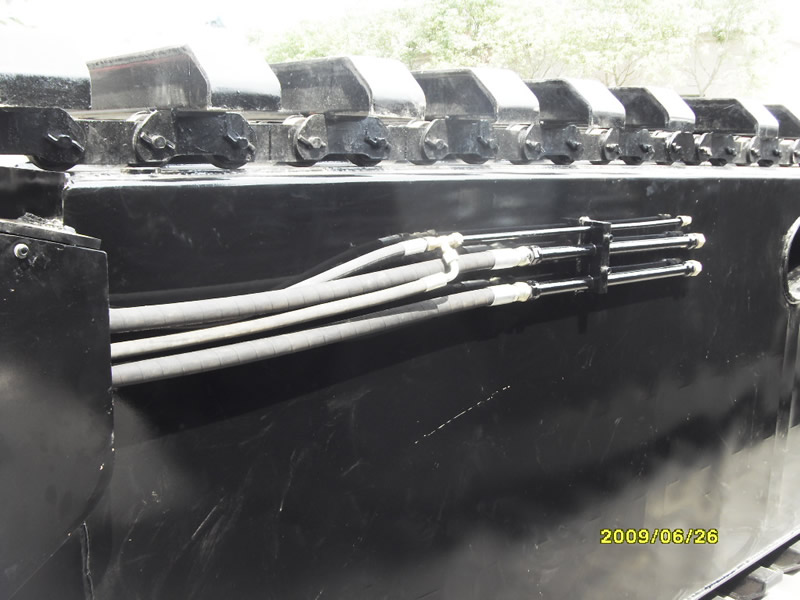

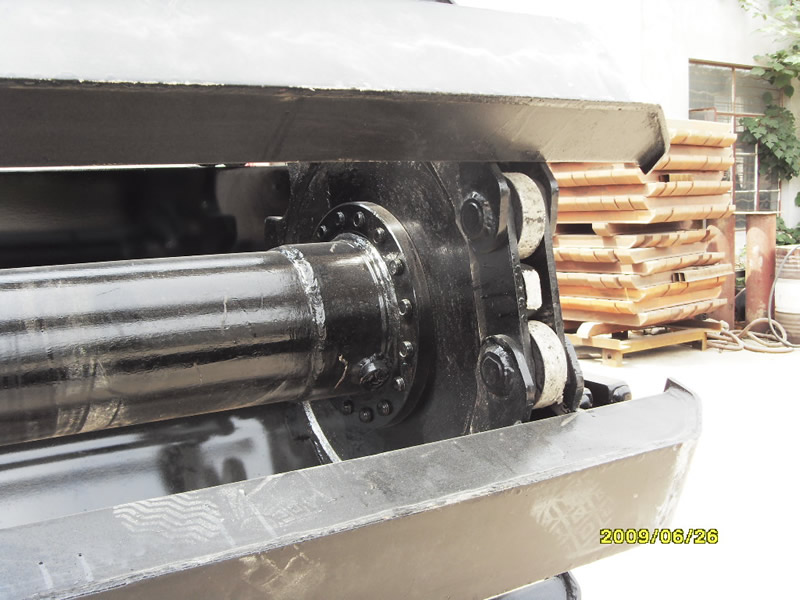

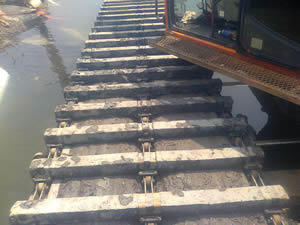

Additional photos of the track system

marsh buggy track system     swamp buggy track system


marsh buggy track system     swamp buggy track system

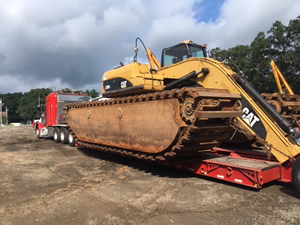

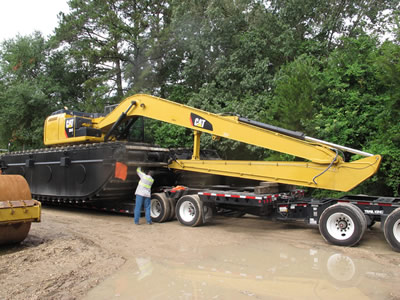

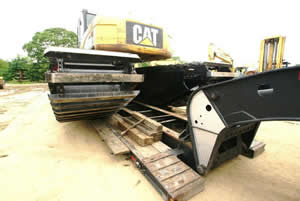

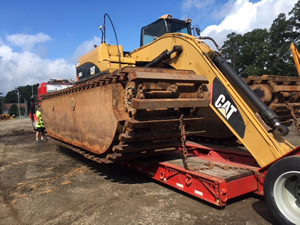

New CAT 320 Marsh Buggy Packaged for Container and Flat Rack Shipment

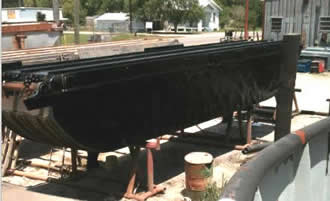

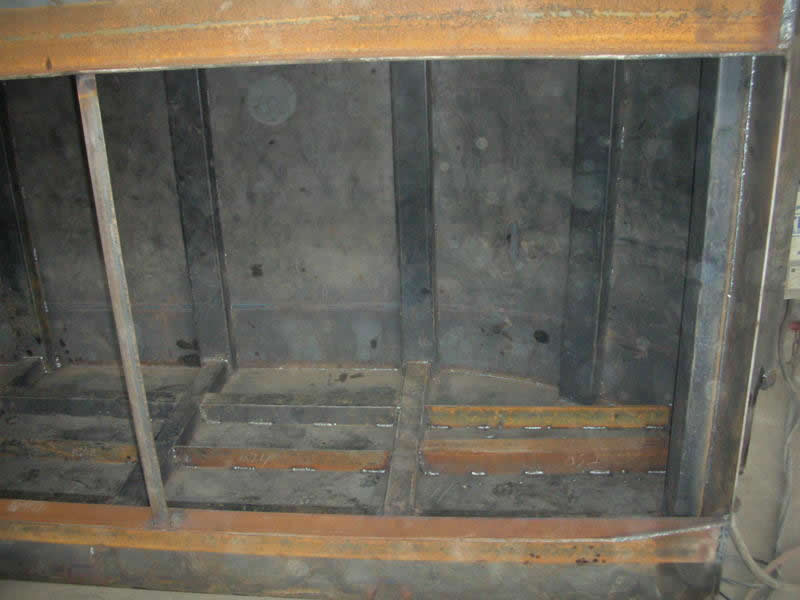

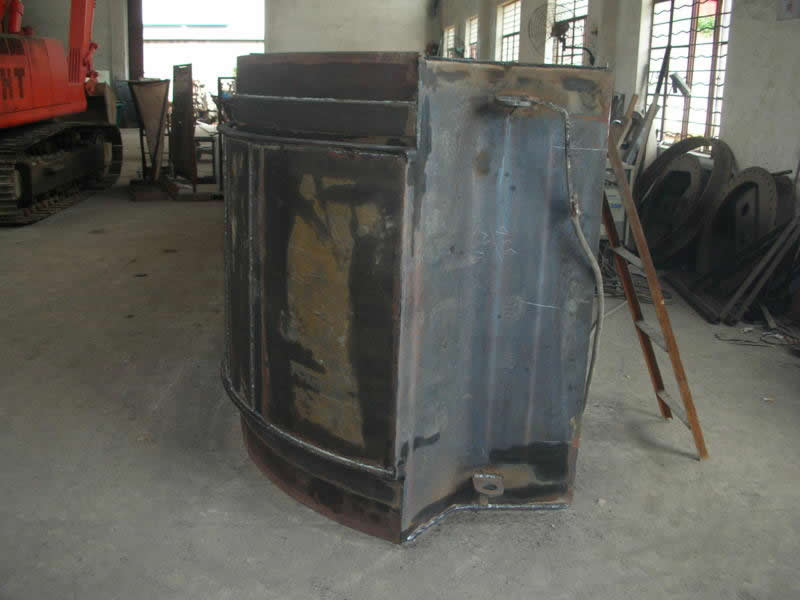

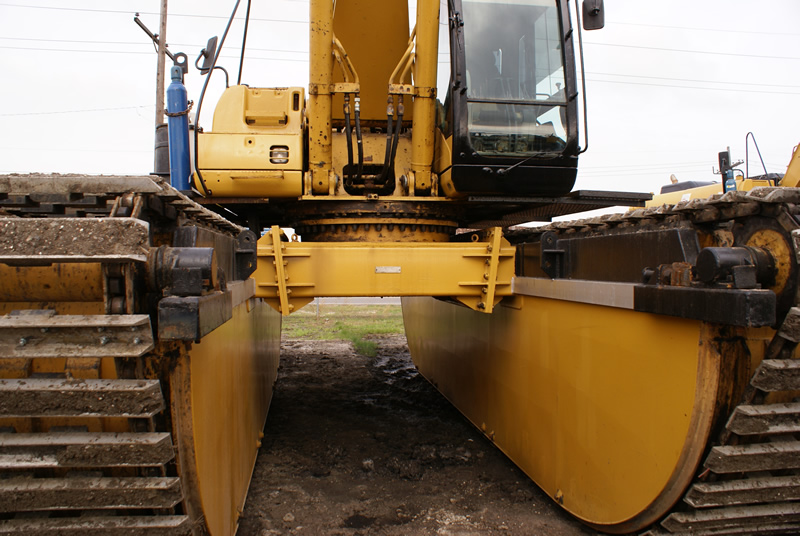

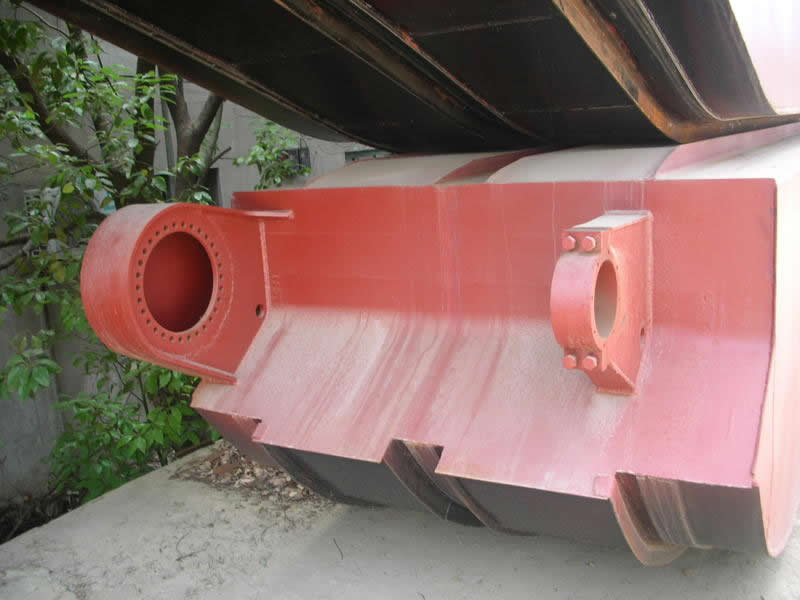

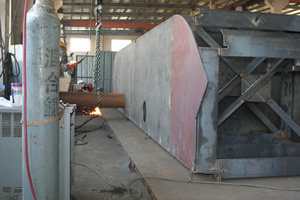

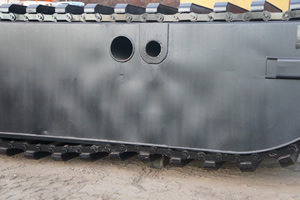

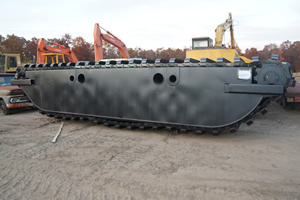

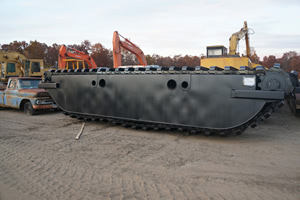

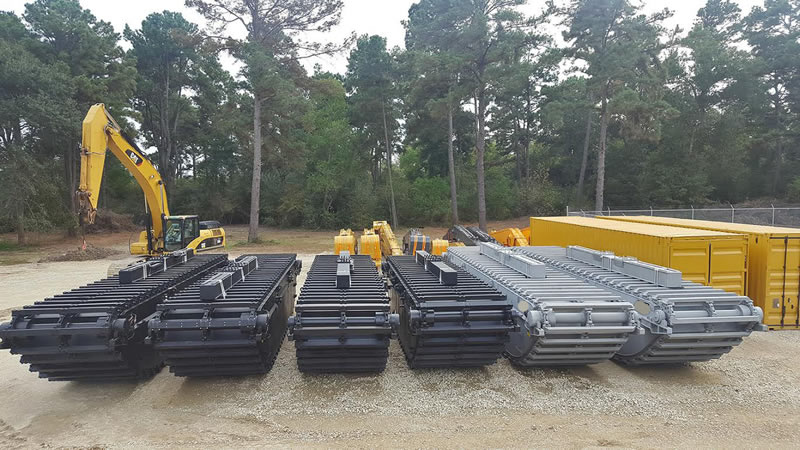

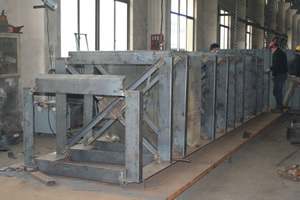

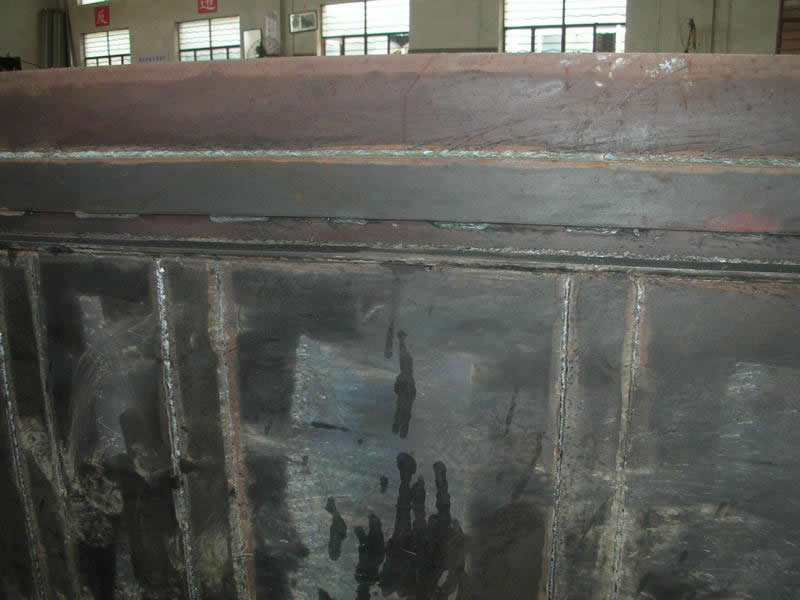

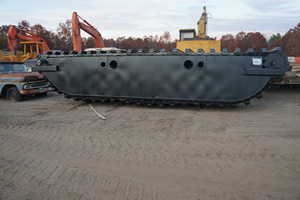

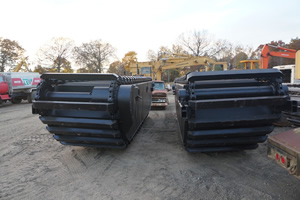

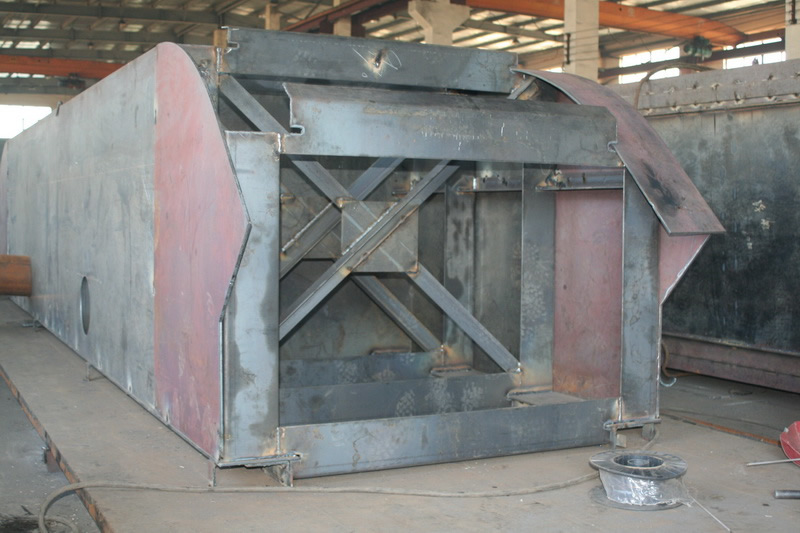

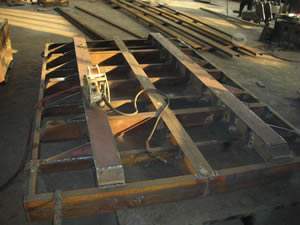

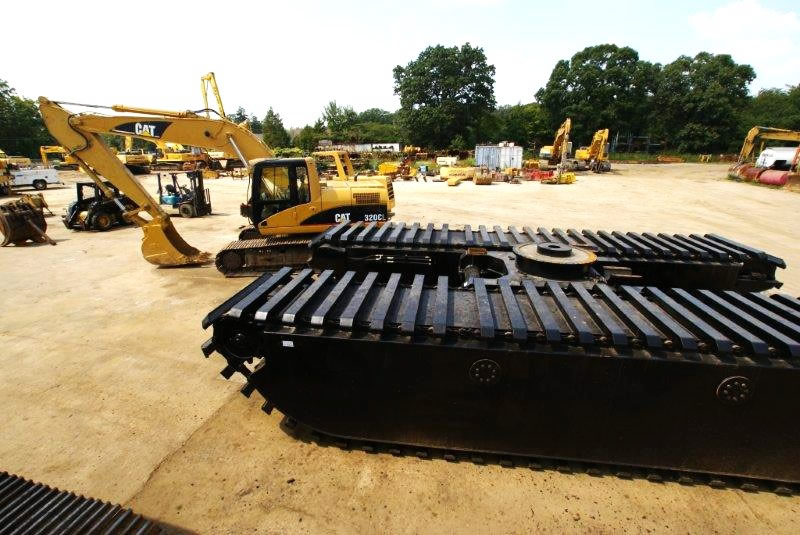

Photos of marsh buggy / swamp buggy bottom
(Click on photo to enlarge)

marsh buggy bottom     swamp buggy bottom

marsh buggy bottom     swamp buggy bottom

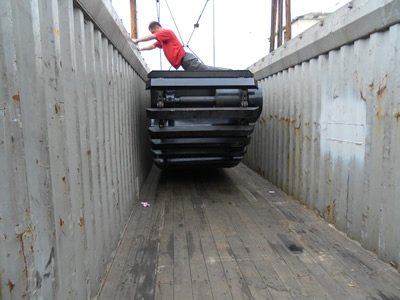

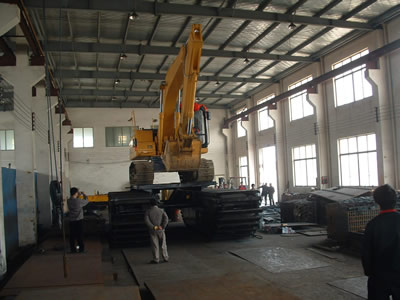

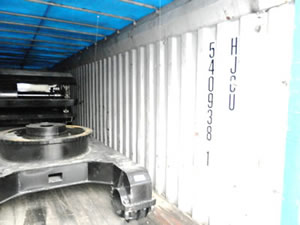

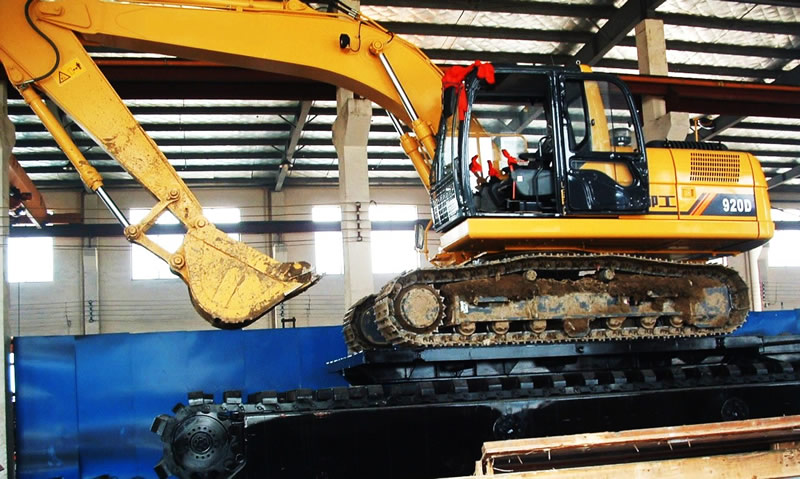

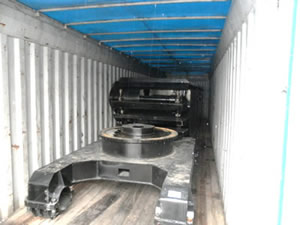

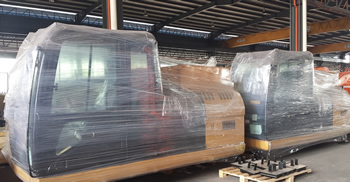

Loading the marsh buggy sections in an open top container for ocean shipment

marsh buggy transport

swamp buggy transport

marsh buggy transport    swamp buggy transport

marsh buggy transport    swamp buggy transport

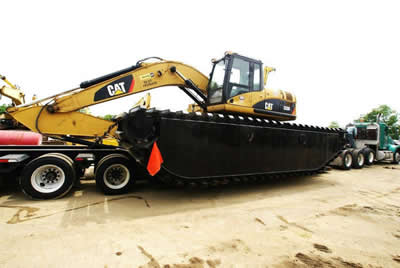

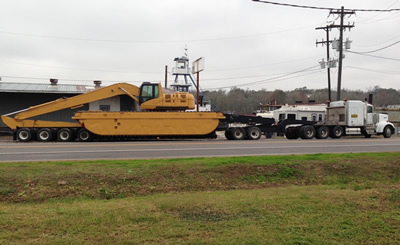

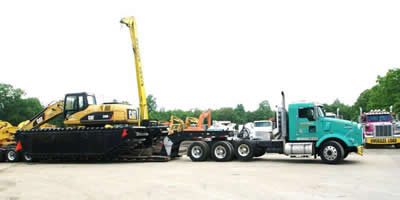

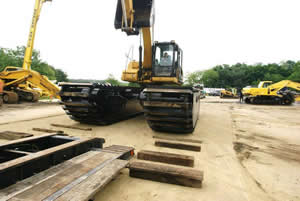

Hauling the marsh buggy / swamp buggy as a complete unit
to and from the port or to jobs at your location


marsh buggy transport

swamp buggy transport

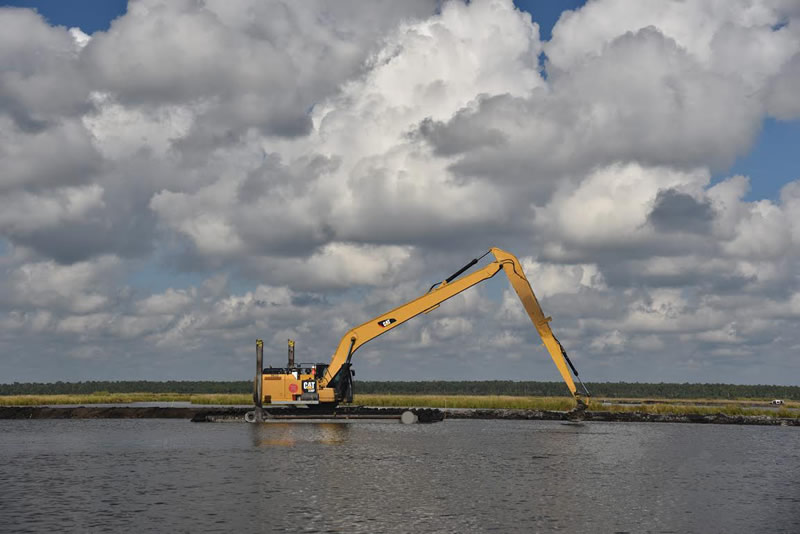

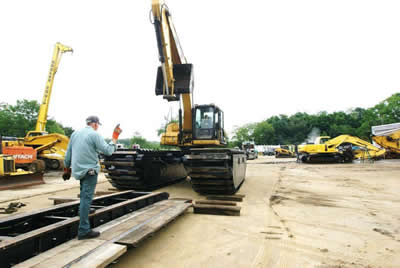

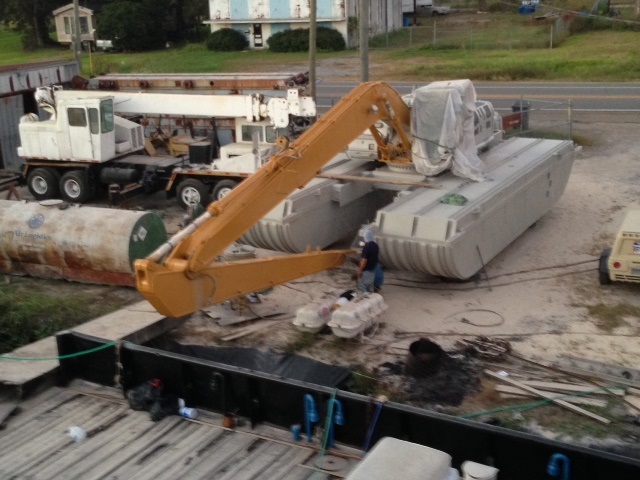

CAT 324E amphibious excavator with a 60' long reach excavator front
marsh buggby transport



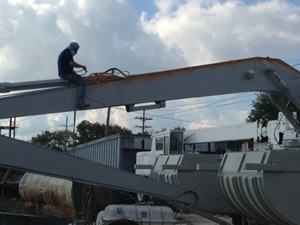

Additional photos of preparing the Marsh Buggy for transport....

marsh buggy transport

marsh buggy transport    swamp buggy transport

marsh buggy transport    swamp buggy transport

marsh buggy transport

marsh buggy transport    swamp buggy transport

marsh buggy transport

swamp buggy transport

swamp buggy transport


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *



Additional Marsh Buggy / Swamp Buggy Pictures


(Click on the following photos to enlarge)

swamp buggy    swamp buggy    swamp buggy
 Length: 27�11�  x  Width: 4�11�  x  Height: 5�11�
Length:  8.5m   x  Width: 1.5m  x  Height: 1.8m

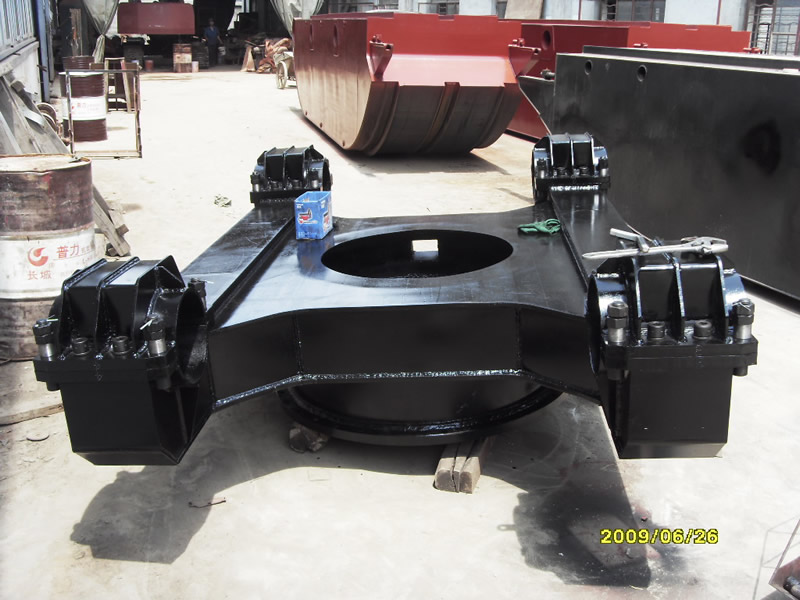

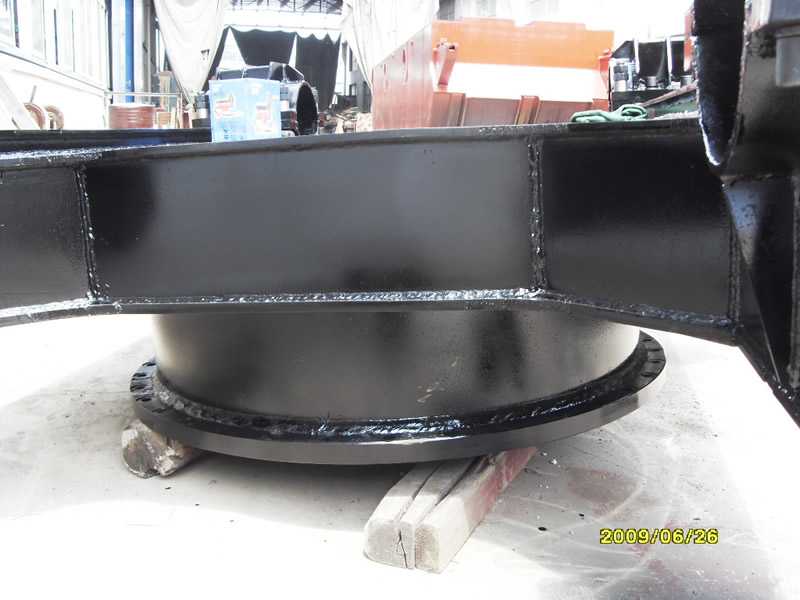

Weight of marsh buggy bottom:  28,000 lb     Weight of turntable base:  4,500 lb
Overall width of Marsh Buggy is 17'2"
swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy   swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy    swamp buggy

swamp buggy    swamp buggy


swamp buggy

May need confirmation of mounting measurements
if we do not have your machine specifications on file.






* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

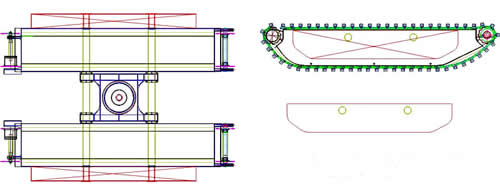

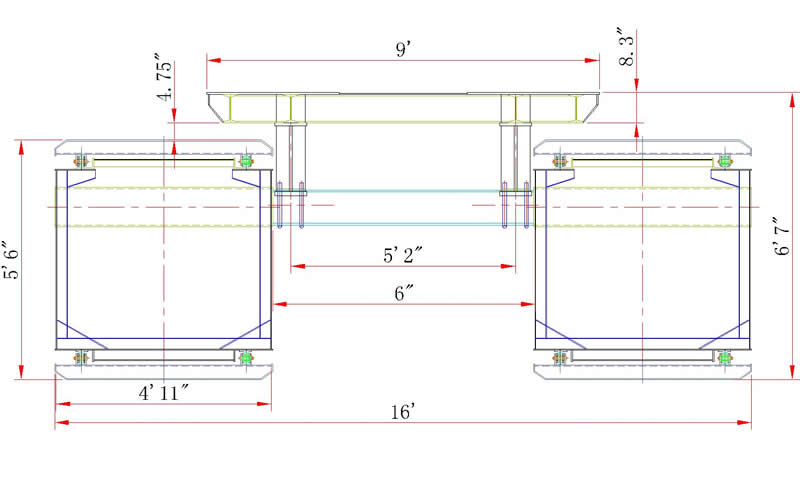

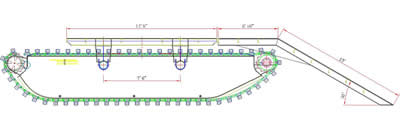

Marsh Buggy / Swamp Buggy with the Additional Pontoons

(Click on drawing to enlarge)
marsh buggy pontoons
28 ft Marsh Buggy with extra pontoons

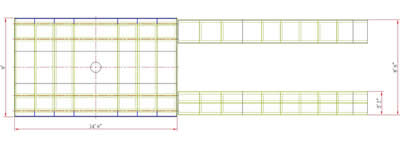

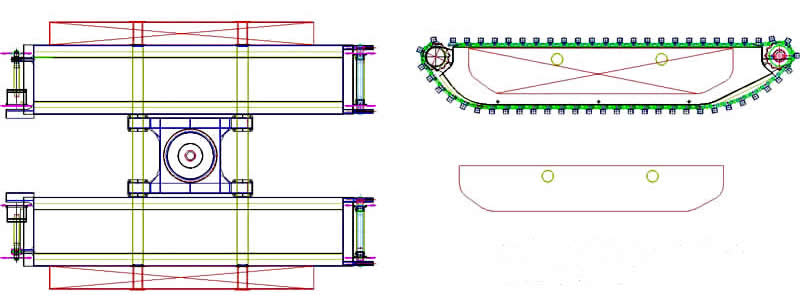

Plan A
Extra Pontoon 20ft long, 3ft 9in high, 2ft wide
Two Pontoons weight 3600 lbs.
Net Floatage 8000 lbs.
Plan B
Extra Pontoon 20ft long, 3ft 9in high, 3ft 9in wide
Two Pontoons weight 6600 lbs.
Net Floatage 15000 lbs.

Note:    DRAWING ABOVE WITH PLAN A AND PLAN B GO WITH THE PICTURES
OF THE BLACK PONTOONS BELOW,  NOT THE NEXT ENTRY OF GREY PONTOONS



marsh buggy pontoons   marsh buggy pontoons

marsh buggy pontoons   marsh buggy pontoons

marsh buggy pontoons   marsh buggy pontoons

marsh buggy pontoons   marsh buggy pontoons

marsh buggy pontoons

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *











* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

marsh buggy pontoons         marsh buggy pontoons

marsh buggy pontoons


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Marsh buggy

swamp buggy


marsh buggy

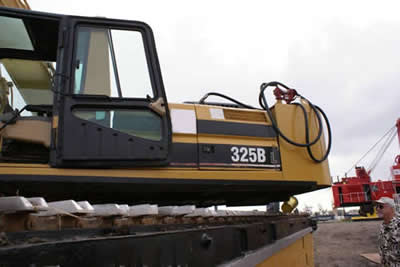

Fuel tank installed instead of counterweight

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


 Length:  37� for standard front......43'8" for long front
Width:  15'11"     Height:  12'9" - 13'     Weight:  65,000 lb ?
  Pontoons:  5'6" wide, 66" high

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


(Click on following 3 drawings to enlarge)
marsh buggy features
marsh buggy features
marsh buggy features


marsh buggy features     marsh buggy features

marsh buggy features     marsh buggy features

marsh buggy features    marsh buggy features

marsh buggy features


marsh buggy features

marsh buggy features    marsh buggy features

marsh buggy features    marsh buggy features


marsh buggy features


Wintertime Marsh Buggies

wintertime marsh buggies       wintertime marsh buggies


Removeable spud for deeper water operation

marsh buggy
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

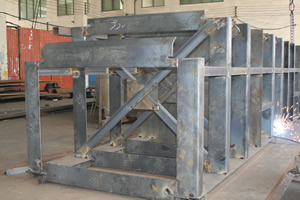

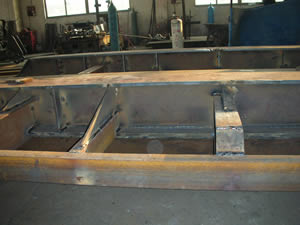

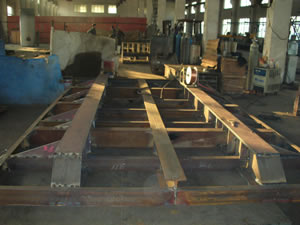

Marsh Buggy / Swamp Buggy Rebuild Program

swamp buggy rebuild

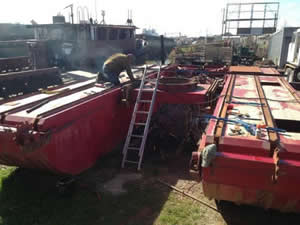

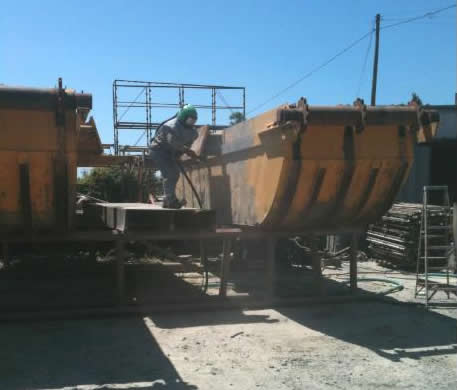

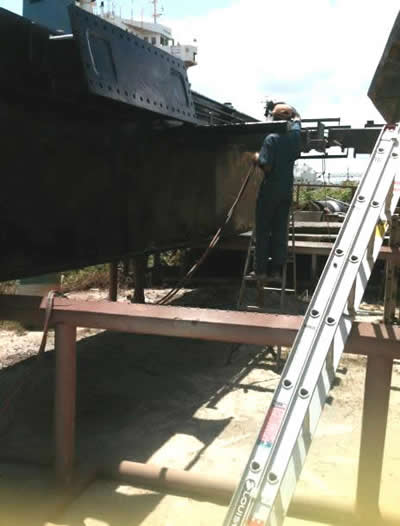

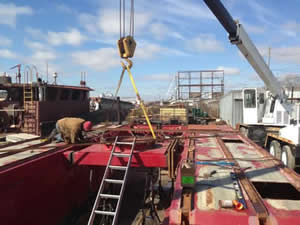

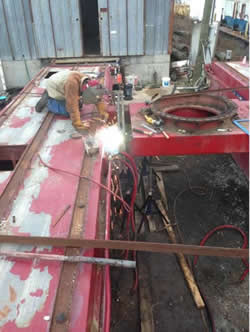

Bottom being primed, sand blasted and repainted

marsh buggy rebuild
Complete new chains being installed on existing pads on pontoons

swamp buggy rebuild

swamp buggy rebuild  swamp buggy rebuild

swamp buggy rebuild


swamp buggy rebuild   swamp buggy rebuild

swamp buggy rebuild   swamp buggy rebuild

swamp buggy rebuild   swamp buggy rebuild

swamp buggy rebuild






marsh buggy bottom   swamp buggy bottom
(Click on pictures to enlarge)


marsh buggy bottom   marsh buggy bottom
(Click on pictures to enlarge)

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

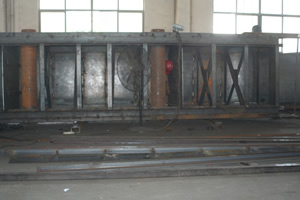

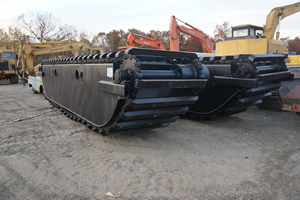

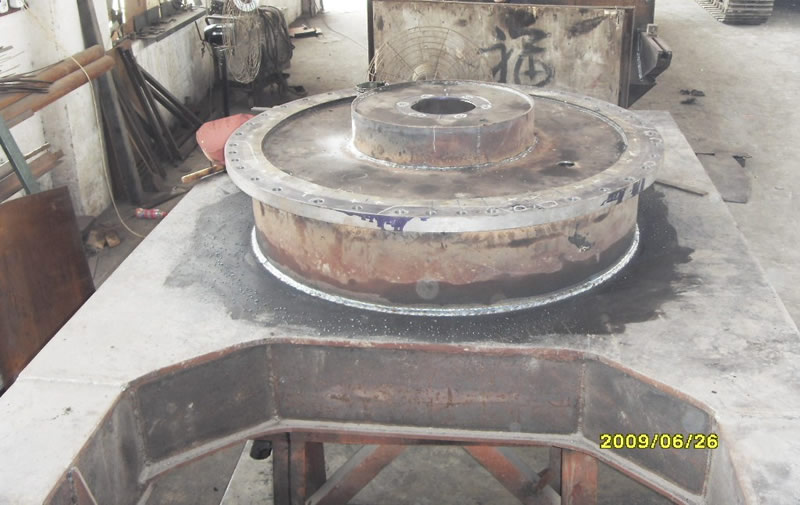

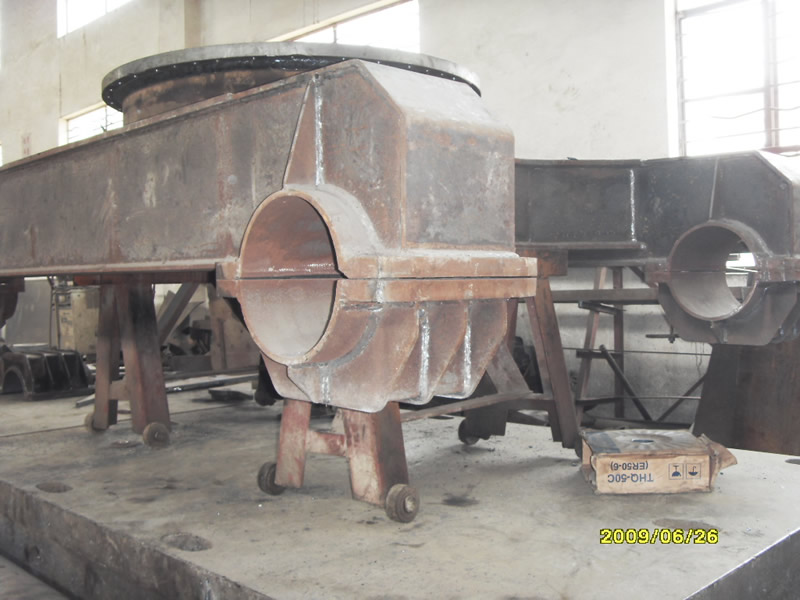

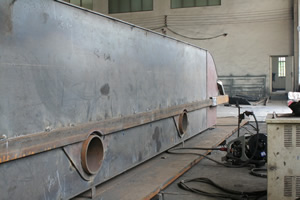

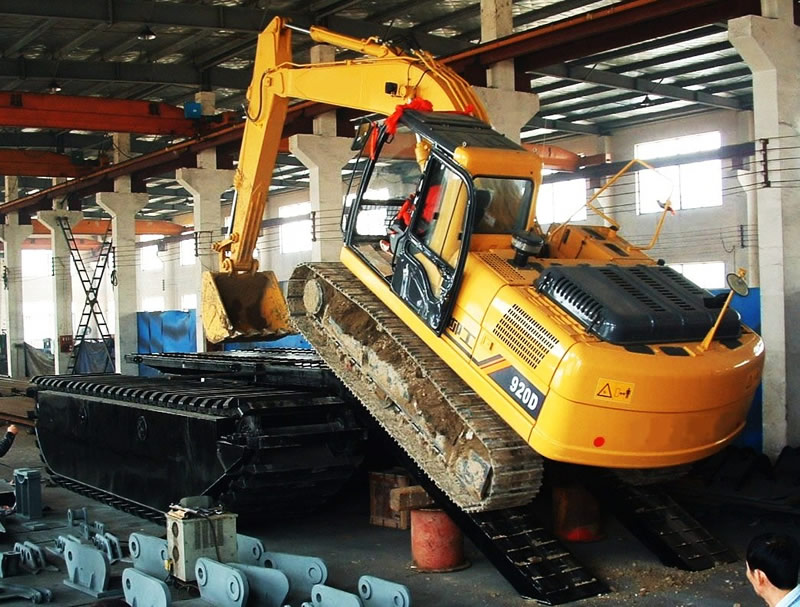

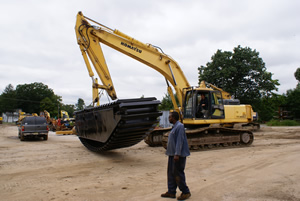

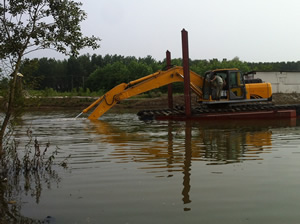

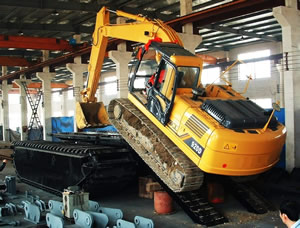

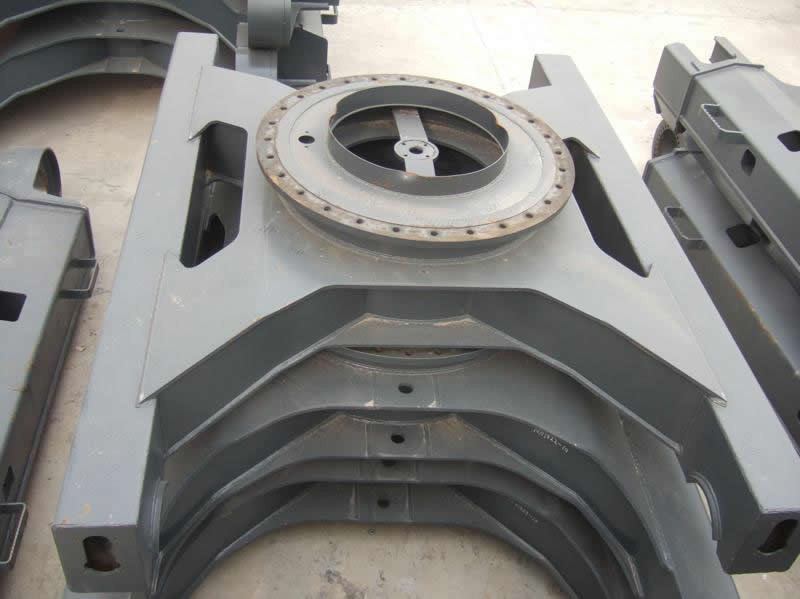

Steps to Convert the Turntable from your Machine to the Marsh Buggy

convert marsh buggy     convert marsh buggy

convert marsh buggy     convert marsh buggy

convert marsh buggy     convert marsh buggy

convert marsh buggy

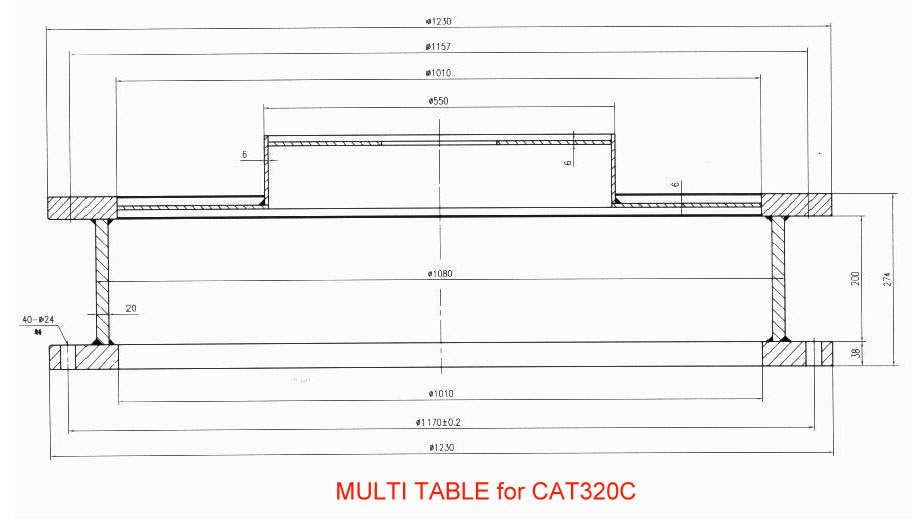

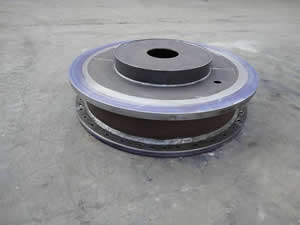

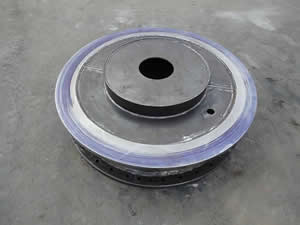

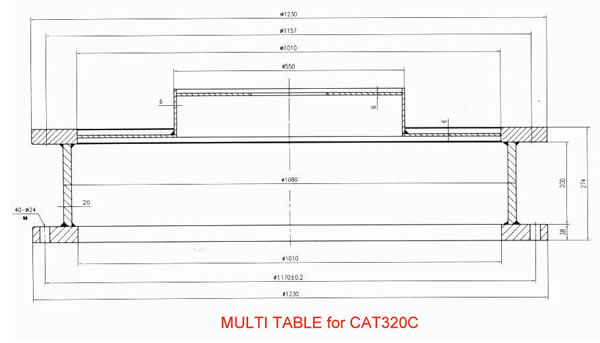

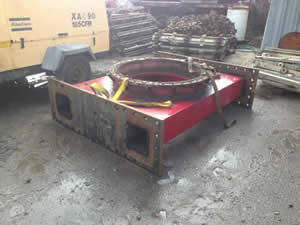

ADAPTER RING / MULTI TABLE    320c anb 01596

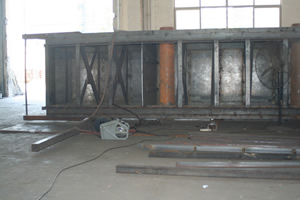

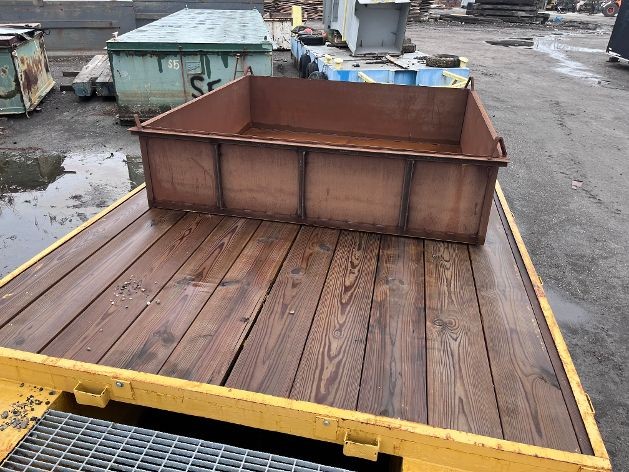

swamp buggy     swamp buggy

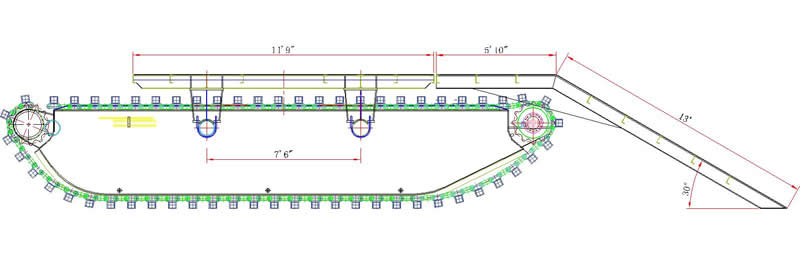

(Click on drawing to enlarge)
swamp buggy

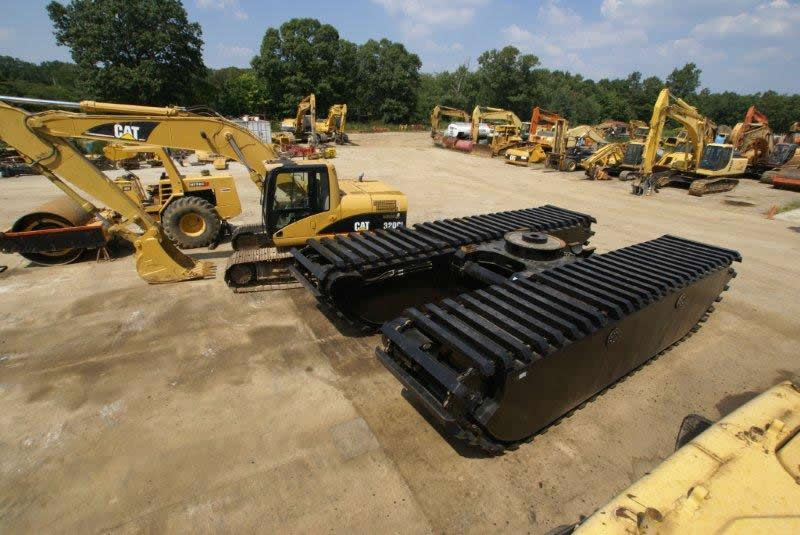

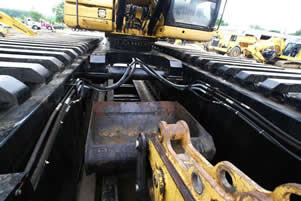

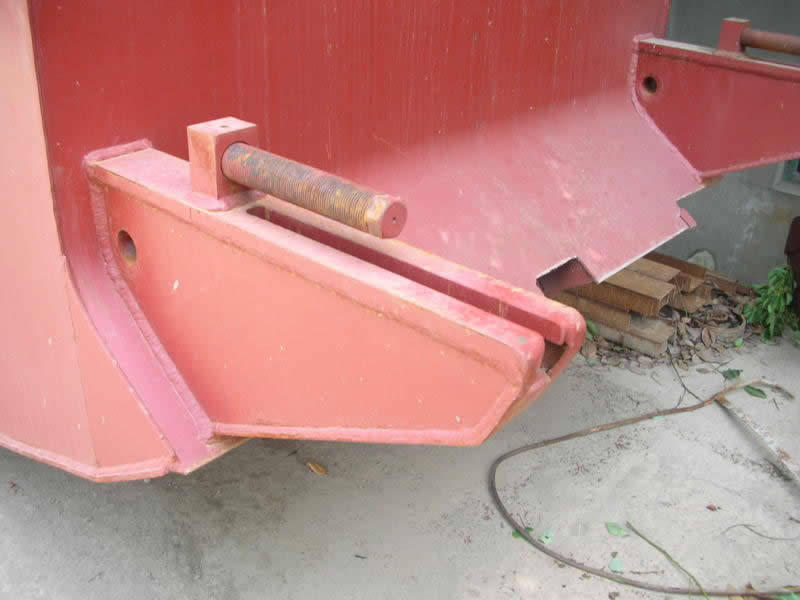

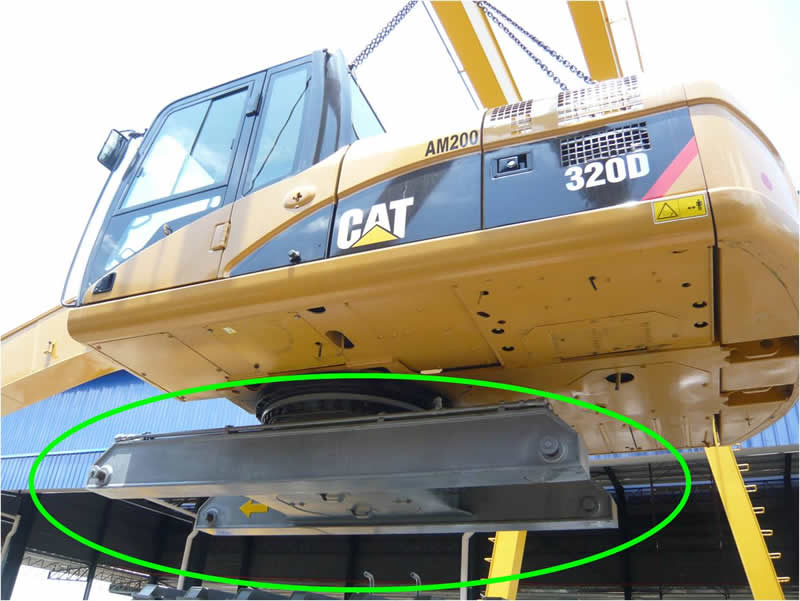

CHAINS and ADAPTER RING

swamp buggy    swamp buggy

swamp buggy          swamp buggy



     GENERAL SHIPPING SPECS OF OTHER MARSH BUGGY - do not use these specs without checking
        with each machine as dimensions may differ


  • 18 foot wide

  •
  • 30 foot long

  •
  • LR boom sticks out 15 feet

  •
  • Std boom 8 feet

  •
  • Height 13 feet

  •
  • Weight 70,000 lbs

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

     Dimensions for 28-C Marsh Buggy

  • Overall Dimension (Length x Width x Height) 27'11" x 15'11" x 5'11"

  •
  • Pontoon Dimension (Length x Width x Height) 27'11" x 4'11" x 5'11"

  •
  • Width of Track 4'11"

  •
  • Travelling Motor, TM40 Korea

  •
  • Pitch is 6 in.

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

     CAT 320 spec - standard operating weight approx 47,500 .... just the upper 28,524


Return to Top




Call Stretch Boomer


LRHR, LLC
106 Ark Road  ·  Lumberton  ·  NJ  ·  08048
Phone: 609-257-3706
Fax: 609-257-3719
E-mail:  longreachhighreach@gmail.com

Design by   Web2k Consulting
